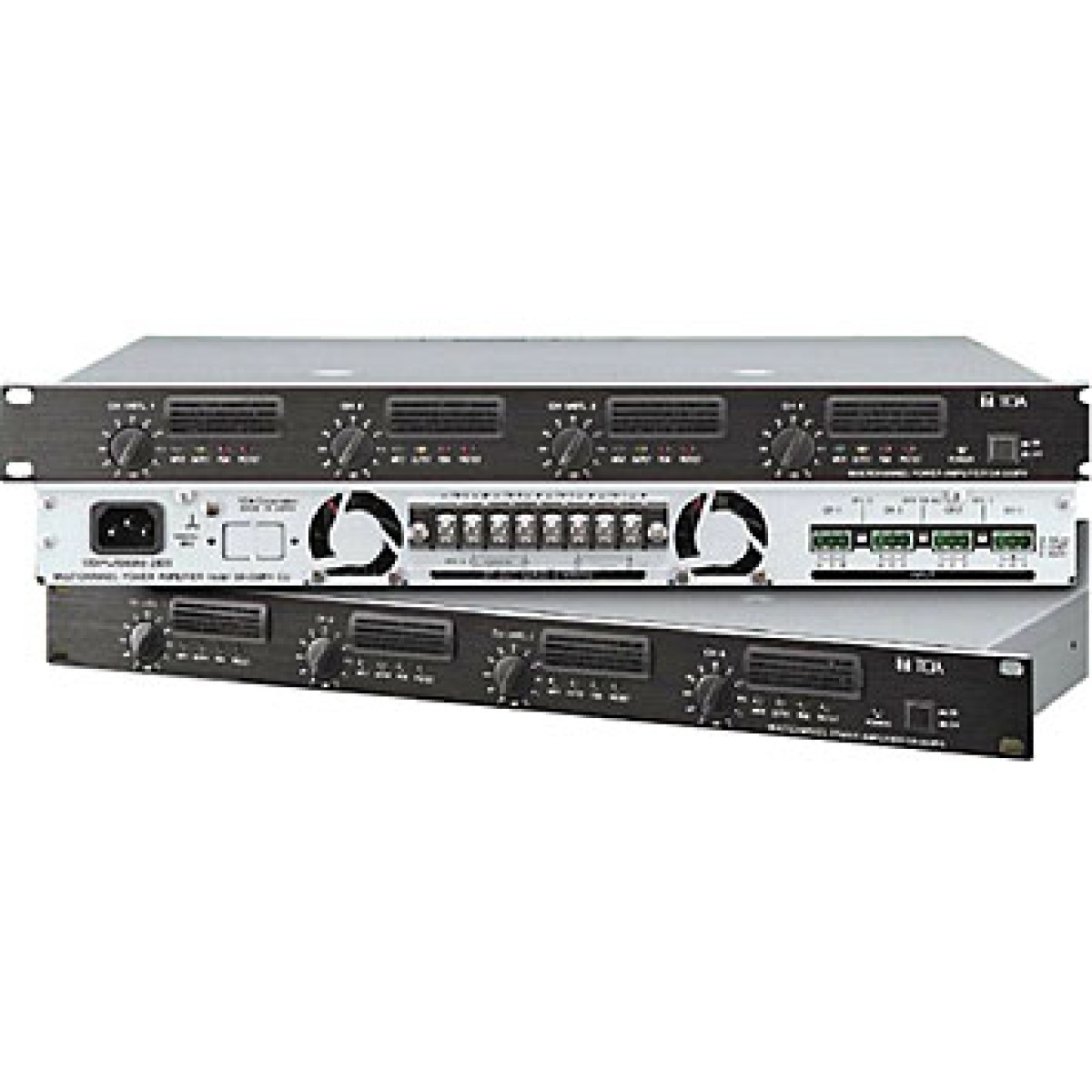

TOA POWER AMPLIFIER 4x250W/70V
Product Code:DA-250FH CE
Out of stock
The DA-250FH is a 4-Channel Digital Power Amplifier designed for 100 V line high-impedance distribution and features lightweight, compact, high power output, and high efficiency. It delivers 250 W x 4 channels (40 ohms output) using a switching power supply. Each channel is equipped with an independent power section. It can be electrically isolated from the high-impedance speaker system by attaching the MT-250H Output Transformer (optional). It can be mounted in an EIA Standard equipment rack (1 unit size).
Spec Number of channels 4
Total Output All Channel Driven 1,000W (1 kHz, 40 ohms)
Power Output 100V per channel: 250W
Frequency Response 20 - 20,000Hz, ±1dB (HPF OFF)
50 Hz - 20,000 Hz, -3/+0 dB (HPF ON)
Total Harmonic Distortion 0.10%
S/N ratio 100 dB
Inputs 10 kohms (unbalanced), 20 kohms (balanced)
Cooling Continuously constant speed fan with front-to rear airflow
Power Requirement AC mains, 50/60 Hz
Spec Number of channels 4
Total Output All Channel Driven 1,000W (1 kHz, 40 ohms)
Power Output 100V per channel: 250W
Frequency Response 20 - 20,000Hz, ±1dB (HPF OFF)
50 Hz - 20,000 Hz, -3/+0 dB (HPF ON)
Total Harmonic Distortion 0.10%
S/N ratio 100 dB
Inputs 10 kohms (unbalanced), 20 kohms (balanced)
Cooling Continuously constant speed fan with front-to rear airflow
Power Requirement AC mains, 50/60 Hz
More
Less
1.831,72€
2.035,08€
Reviews
0 reviews
Write a review
Description
The DA-250FH is a 4-Channel Digital Power Amplifier designed for 100 V line high-impedance distribution and features lightweight, compact, high power output, and high efficiency. It delivers 250 W x 4 channels (40 ohms output) using a switching power supply. Each channel is equipped with an independent power section. It can be electrically isolated from the high-impedance speaker system by attaching the MT-250H Output Transformer (optional). It can be mounted in an EIA Standard equipment rack (1 unit size).
Spec Number of channels 4
Total Output All Channel Driven 1,000W (1 kHz, 40 ohms)
Power Output 100V per channel: 250W
Frequency Response 20 - 20,000Hz, ±1dB (HPF OFF)
50 Hz - 20,000 Hz, -3/+0 dB (HPF ON)
Total Harmonic Distortion 0.10%
S/N ratio 100 dB
Inputs 10 kohms (unbalanced), 20 kohms (balanced)
Cooling Continuously constant speed fan with front-to rear airflow
Power Requirement AC mains, 50/60 Hz
Spec Number of channels 4
Total Output All Channel Driven 1,000W (1 kHz, 40 ohms)
Power Output 100V per channel: 250W
Frequency Response 20 - 20,000Hz, ±1dB (HPF OFF)
50 Hz - 20,000 Hz, -3/+0 dB (HPF ON)
Total Harmonic Distortion 0.10%
S/N ratio 100 dB
Inputs 10 kohms (unbalanced), 20 kohms (balanced)
Cooling Continuously constant speed fan with front-to rear airflow
Power Requirement AC mains, 50/60 Hz
Attributes
Attributes
| AC Line Voltage and Frequency Configurations Available | 230 |
| Amplifier Type | Power Amplifier |
| Catalog | Professional |
| Category | AMPLIFIERS |
| Channels | 4 |
| Depth (cm) | 40.18 |
| Frequency Response (at 1W, 4/8Ω) (dB) ± | 50-20000 |
| Height (cm) | 4.4 |
| Load Impedance | 100V/70V |
| Manufacturer | TOA |
| Measurement Unit | PIECE |
| Order Quantity | 1 |
| Power Output | 1000 |
| Power Output W/100V | 250 |
| Rack Installation Possible | Yes |
| Signal to Noise Ratio (dB) | 100 |
| Total Harmonic Distortion (THD) (full rated power, 20Hz to 20kHz | 0,1% |
| Use | POWER AMPLIFIERS 100V |
| Warranty Months | 12 |
| Weight (Kg) | 6.8 |
| Width (cm) | 48.2 |
