TOA POWER AMPLIFIER 4x500W/70V

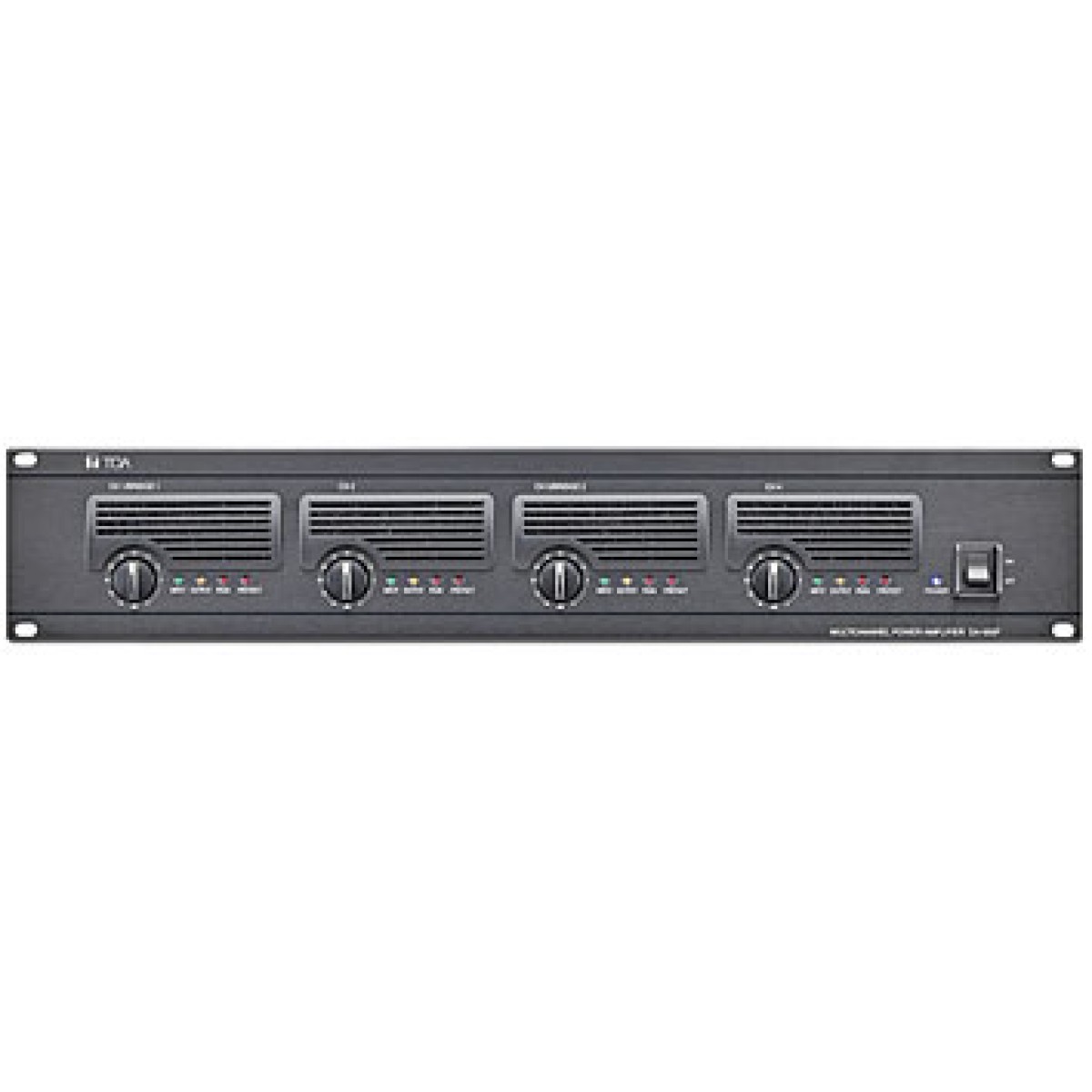

The DA-500FH is a 4-Channel Digital Power Amplifier designed for 100 V line high-impedance distribution and features lightweight, compact, high power output, and high efficiency. It delivers 500 W x 4 channels (20 ohms output) using a switching power supply. Each channel is equipped with an independent power section. It can be electrically isolated from the high-impedance speaker system by attaching the MT-251H Output Transformer (optional). It can be mounted in an EIA Standard equipment rack (2 unit size)

Spec Power Requirement 220 - 240 V AC, 50/60 Hz
Number of Channels 4
Total Output 2000 W (1 kHz, 20 Ohm: 100 V line)
Power Output 500 W (Hi-Z: 100V per channel )

Rated power consumption 2300 W, 16.8 A (100 Volt)

Frequency response 50 Hz - 20 kHz (-3 dB, +1 dB)

THD 0.1 % (1 kHz) / 0.3 % (20 Hz - 20 kHz)
S/N Ratio (A weighted) 100 dB
Crosstalk at 10kHz (A weighted) 70 dB
DC Offset ±5 mV
Voltage Gain 38.2 dB

Damping Factor 240 (1 kHz, 20 Ohm: 100 V line)
Inputs Input impedance 10 kOhm (unbalanced), 20 kOhm (balanced)
Input sensitivity +4 dB (1.23 V)
Input clipping 12 V (25.1 dBu)
Protection Circuit Amplifier section: DC output, overheat protection, load shorting, overload current, maximum output / Power supply section: Overheat protection, AC rush current
Cooling Continuously constant speed fan with front-to-rear airflow, 100,000 hours life time at 25°C
Operating Temperature 10°C to +40°C
Operating Humidity Under 90% RH (no condensation)
Dimensions 482 (W) 88.4 (H) 404.2 (D) mm

Weight 9 kg
Finish Panel: Aluminum, alumite process, black/Case: Plated steel sheet

Option Matching transformer: MT-251H
