EUROTRUSS LIFTER FOR GROUND LIFTING LINE ARRAY UP TO A 400KG LOAD UP AT 6m

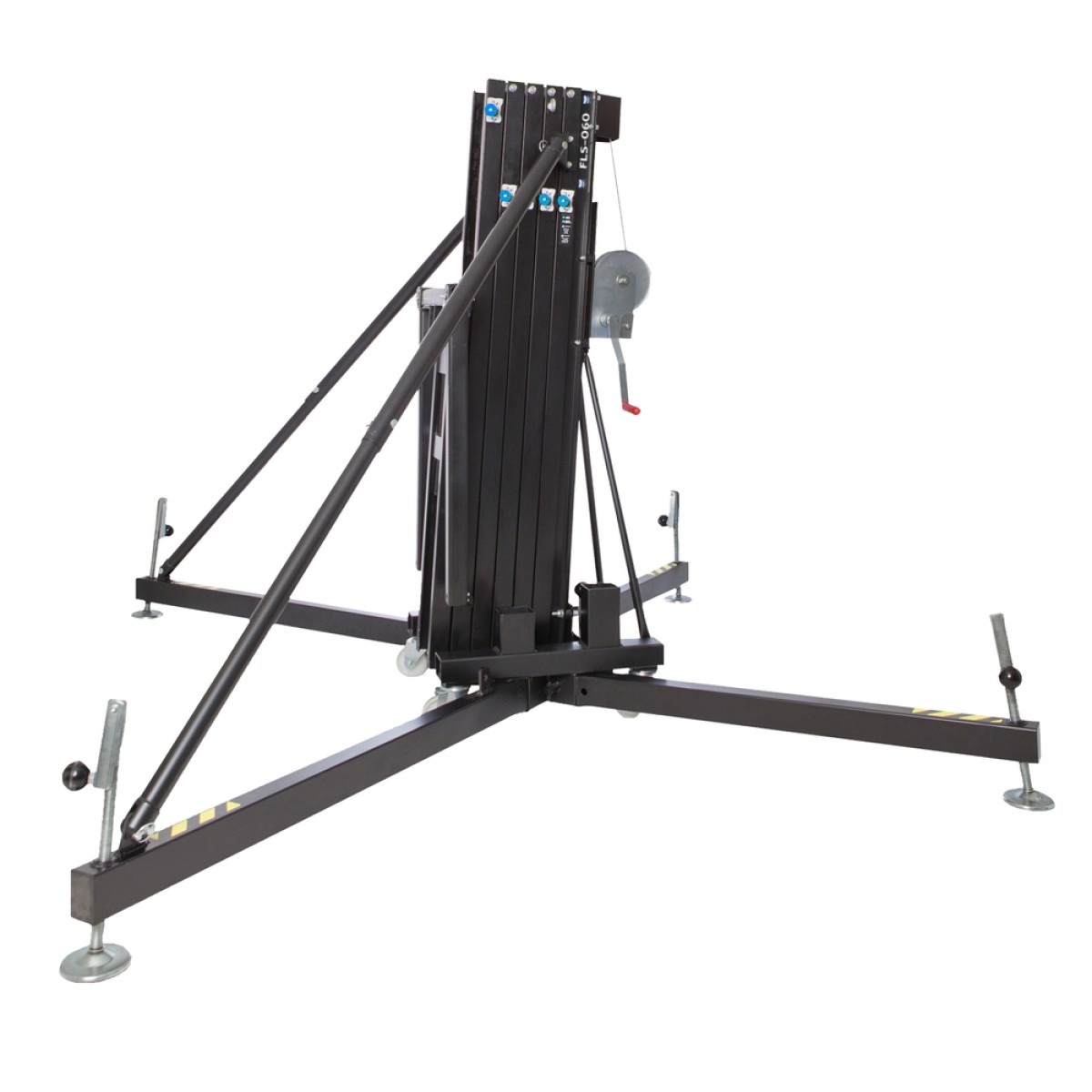

FLS-060, a powerful & compact lifter for ground lifting line array up to a 400kg load up at 6,0m. Compact as it is only 1,58m high in folded position and powerful as all parts are reinforced. The position of the front legs and distance between them increase the stability and spacious enough to position the subwoofer.

Unique ALS (Auto-Lock-Security), locking bolts and brake winch give you the power and the peace of mind to fly your PA. All Eurotruss lifters are powdercoated black.
The FLS-060 combines the great load capacity at a maximum convenience with very compact dimensions.

Facts
Main body made out of 6082-T6 alluminium
Steel base and legs DIN 2394, catches and pulleys of ST-37 steel.
Winch with automatic brake. Certification CE and GS T?V.
Steel cable guided by channelled steel pulleys with ball bearings.
Steel cable DIN 3060. Quality 180 Kg/mm2 twist resistant. Cable diameter: 6 mm.
Exclusive ALS system (Auto-Lock Security)

TECHNICAL SPECIFICATIONS
Weight: 199 kg
Min. load: 25 kg
Max. load: 400Kg
Min. height: 1,69 m
Max. height: 6m
Unfolded base: 2.40 x 2m
Folded size: 55x68x167 cm
Number of profiles: 5
Forks: 74,5 cm
