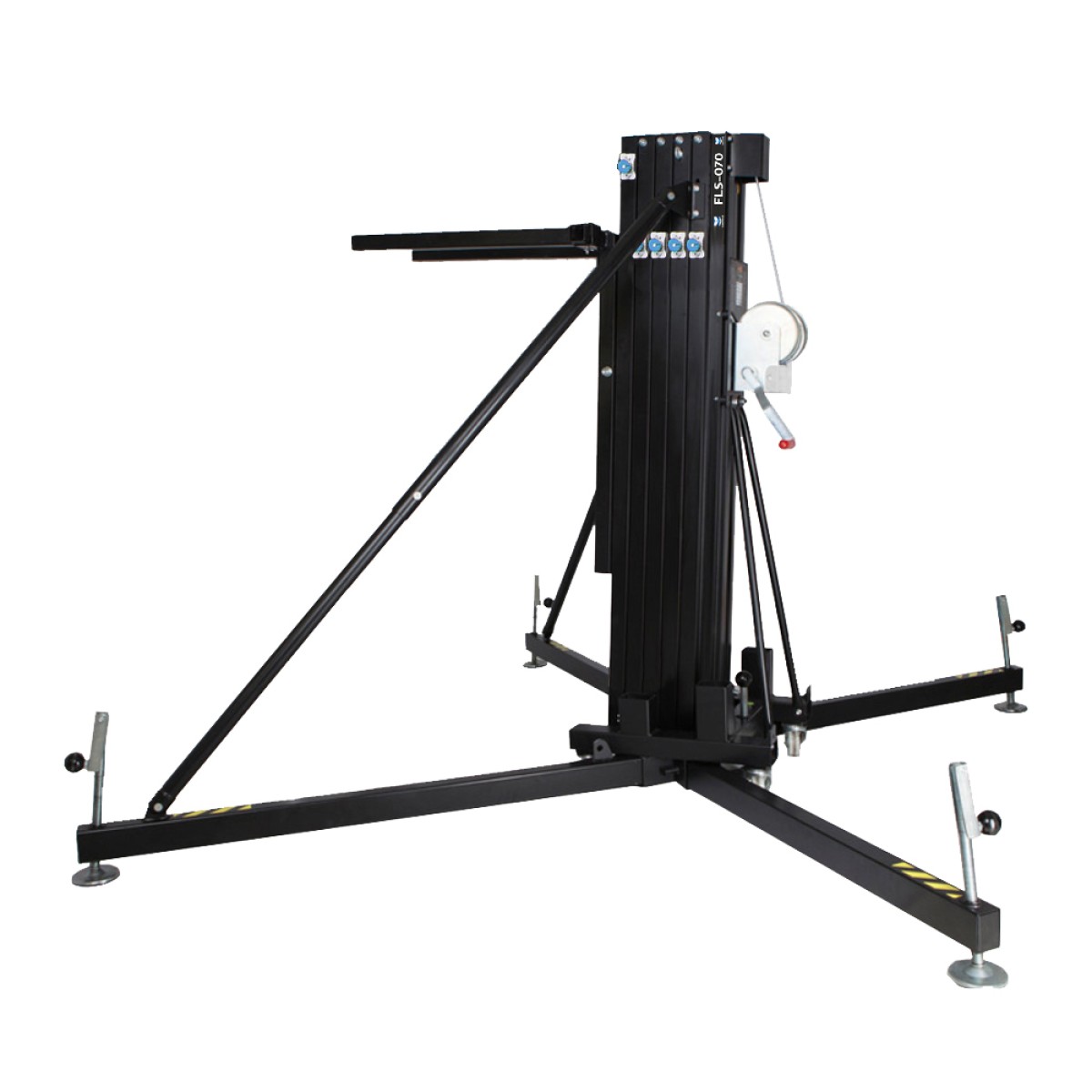

EUROTRUSS LIFTER FOR GROUND LIFTING LINE ARRAY UP TO A 500KG LOAD UP AT 7m

FLS-070 is the pro lifter for ground lifting heavy line array up to a 500kg load up at 7,0m. The FLS-070 has an enhanced reinforcement design to restrain heavier and larger audio systems. Unique ALS (Auto-Lock-Security), locking bolts and brake winch give you the power and the peace of mind to fly your PA. The position of the front legs and distance between them increase the stability and spacious enough to position the subwoofer. The FLS-070 is the pro lifter for larger audio systems. All Eurotruss lifters are powdercoated black.

Facts
Main body made out of 6082-T6 alluminium
Steel base and legs DIN 2394, catches and pulleys of ST-37 steel.
Winch with automatic brake. Certification CE and GS T?V.
Steel cable guided by channelled steel pulleys with ball bearings.
Steel cable DIN 3060. Quality 180 Kg/mm2 twist resistant. Cable diameter: 6 mm
Exclusive ALS system (Auto-Lock Security)

TECHNICAL SPECIFICATIONS
Weight: 209 kg
Min. load: 25 kg
Max. load: 500K g
Min. height: 1,87m
Max. height: 7m
Unfolded base: 2.57 x 2.12m
Folded size: 55x68x187cm
Number of profiles: 5
Forks: 74,5cm
