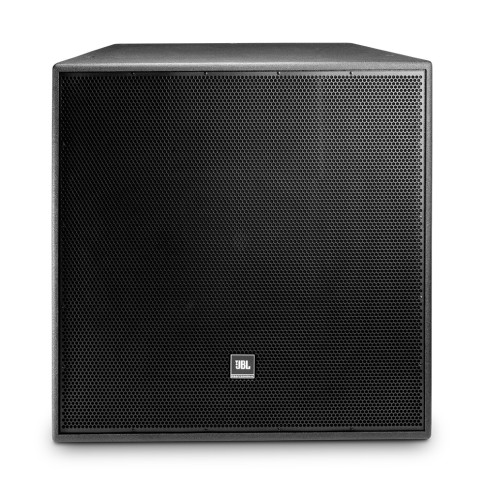

JBL 2-WAYS SPEAKER 500W
Product Code:PD 544
Out of stock
PD544 is a Precision Directivity loudspeaker designed for applications requiring high output capability with excellent pattern control. PD544 can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth fullrange systems.
- 380 mm (15?) horn-loaded low-frequency driver
- Large PT Progressive Transition waveguides provide broad band 40° x 40° pattern control, low distortion at high SPL levels and smooth frequency response
- Rotatable waveguide allows for either horizontal or vertical cabinet orientation
- Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes
- 380 mm (15?) horn-loaded low-frequency driver
- Large PT Progressive Transition waveguides provide broad band 40° x 40° pattern control, low distortion at high SPL levels and smooth frequency response
- Rotatable waveguide allows for either horizontal or vertical cabinet orientation
- Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes
More
Less
Description
PD544 is a Precision Directivity loudspeaker designed for applications requiring high output capability with excellent pattern control. PD544 can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth fullrange systems.
- 380 mm (15?) horn-loaded low-frequency driver
- Large PT Progressive Transition waveguides provide broad band 40° x 40° pattern control, low distortion at high SPL levels and smooth frequency response
- Rotatable waveguide allows for either horizontal or vertical cabinet orientation
- Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes
- 380 mm (15?) horn-loaded low-frequency driver
- Large PT Progressive Transition waveguides provide broad band 40° x 40° pattern control, low distortion at high SPL levels and smooth frequency response
- Rotatable waveguide allows for either horizontal or vertical cabinet orientation
- Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes
Attributes
Attributes
| Catalog | Professional |
| Category | SPEAKERS |
| Color | Black/Μαύρο |
| Coverage Pattern | 40x40 |
| Depth (cm) | 67 |
| Freq From (Hz) | 90 |
| Freq Up to (Hz) | 17000 |
| Height (cm) | 78.2 |
| High Speaker Size | 3" |
| Impedance | Ohm |
| Low Speaker Size | 15" |
| Manufacturer | JBL |
| Max SPL Output (dB) | 138 |
| Measurement Unit | PIECE |
| Nominal Impedance (Ohms) | 8 |
| Order Quantity | 1 |
| Power Rating Continuous Watt/Ohm | 500 |
| Shell Material | Wood |
| Speaker System | Two Way |
| Speaker Type | Passive/Παθητικό |
| Use | INSTALLATION SPEAKERS |
| Warranty Months | 24 |
| Weight (Kg) | 69 |
| Width (cm) | 78.3 |
