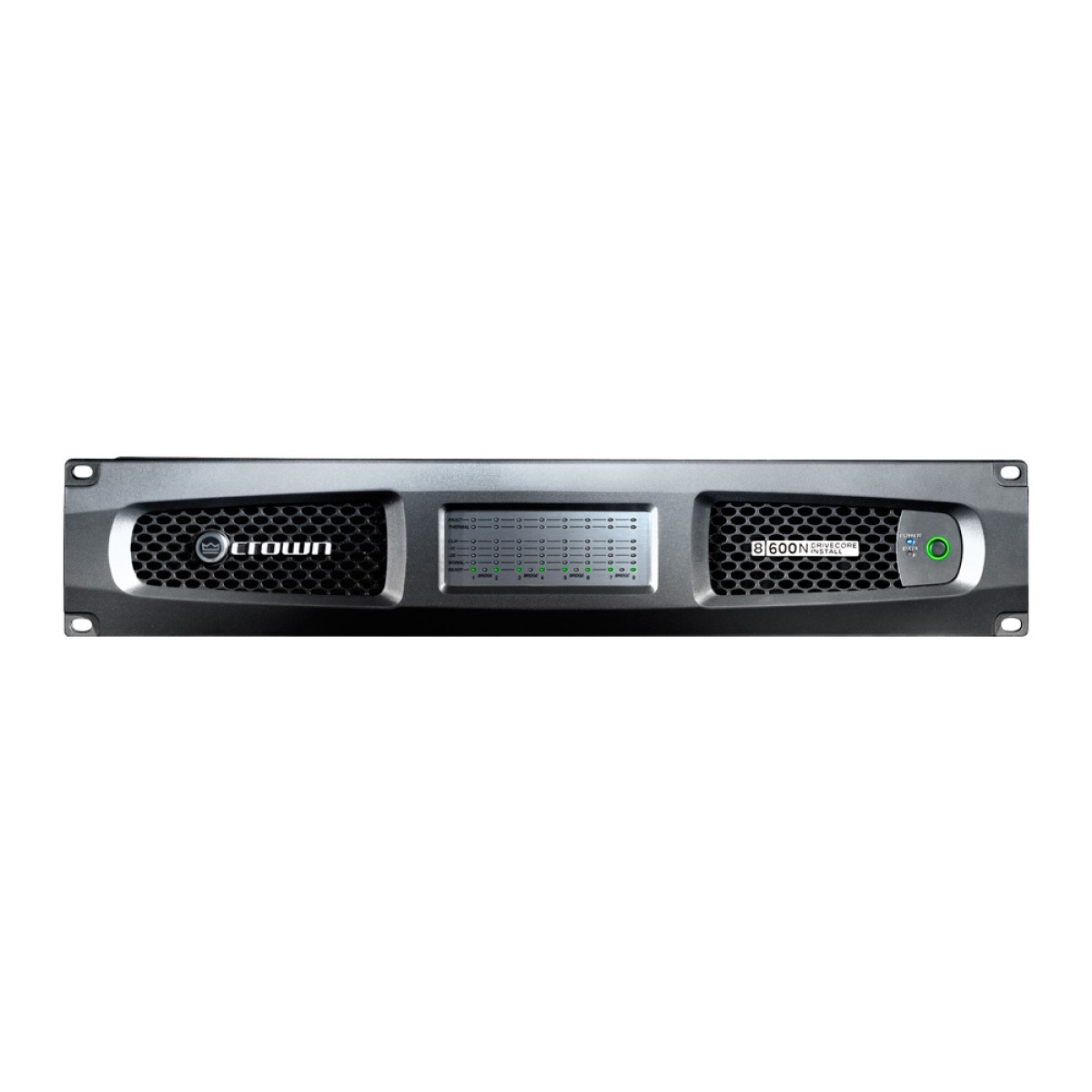

CROWN POWER AMPLIFIER 8X600W NETWORK
Product Code:DCI8/600N
Out of stock
Amplifier installation 8x600W loads 4/8/70V/100V with independent load operation per channel technology DriveCore, pulse power and topology classD. Operation at loads 2h, Fan variable speed, 0,35% THD, balanced 3pin block connectors, auto standby mode 30 '. Feed world use 100-240v50/60hz. Aux port for control and interface with control systems. Rackmount 2U. Dimensions: 8.75cm x47.5cm x 42,5 cm. ISSUE N (NETWORK, MONITORING & CONTROL). They Analog and Digital inputs, programmable GPIO Ports, DSP with LevelMAX Limiters, Input / Output EQ, Delay, Matrix Mixer, Speaker Line Monitoring, Hi Qnet and BLU-Link ports. Weight 13kg.
More
Less
Reviews
0 reviews
Write a review
Description
Amplifier installation 8x600W loads 4/8/70V/100V with independent load operation per channel technology DriveCore, pulse power and topology classD. Operation at loads 2h, Fan variable speed, 0,35% THD, balanced 3pin block connectors, auto standby mode 30 '. Feed world use 100-240v50/60hz. Aux port for control and interface with control systems. Rackmount 2U. Dimensions: 8.75cm x47.5cm x 42,5 cm. ISSUE N (NETWORK, MONITORING & CONTROL). They Analog and Digital inputs, programmable GPIO Ports, DSP with LevelMAX Limiters, Input / Output EQ, Delay, Matrix Mixer, Speaker Line Monitoring, Hi Qnet and BLU-Link ports. Weight 13kg.
Attributes
Attributes
| AC Line Voltage and Frequency Configurations Available | 110-220 VAC 50/60 Hz |
| Amplifier Type | Power Amplifier |
| Catalog | Professional |
| Category | AMPLIFIERS |
| Channels | 8 |
| Depth (cm) | 35.6 |
| Frequency Response (at 1W, 4/8Ω) (dB) ± | 20 Hz - 20 kHz, ± 0.25dB (at 1 watt) |
| Height (cm) | 8.9 |
| Input Inpendance | 10 kOhms, 5 kOhms |
| Load Impedance | 100V/70V |
| Manufacturer | CROWN |
| Measurement Unit | PIECE |
| Order Quantity | 1 |
| Power Output W/100V | 600 |
| Power Output W/4Ω | 600 |
| Power Output W/8Ω | 600 |
| Power Output W/Brigde Mode/8Ω | 1200 |
| Rack Installation Possible | Yes |
| Signal to Noise Ratio (dB) | >104 dB |
| Total Harmonic Distortion (THD) (full rated power, 20Hz to 20kHz | <0.35%, 20 Hz - 20 kHz |
| Use | MULTI CHANNEL AMPLIFIERS |
| Voltage Gain (dB) | 34 dB |
| Warranty Months | 36 |
| Weight (Kg) | 13.6 |
| Width (cm) | 48.3 |
