EUROLITE WIRELESS DMX SYSTEM 2.4 GHZ TRANSMITTER
Product Code:QUICKDMX WIRELESS/T
Out of stock

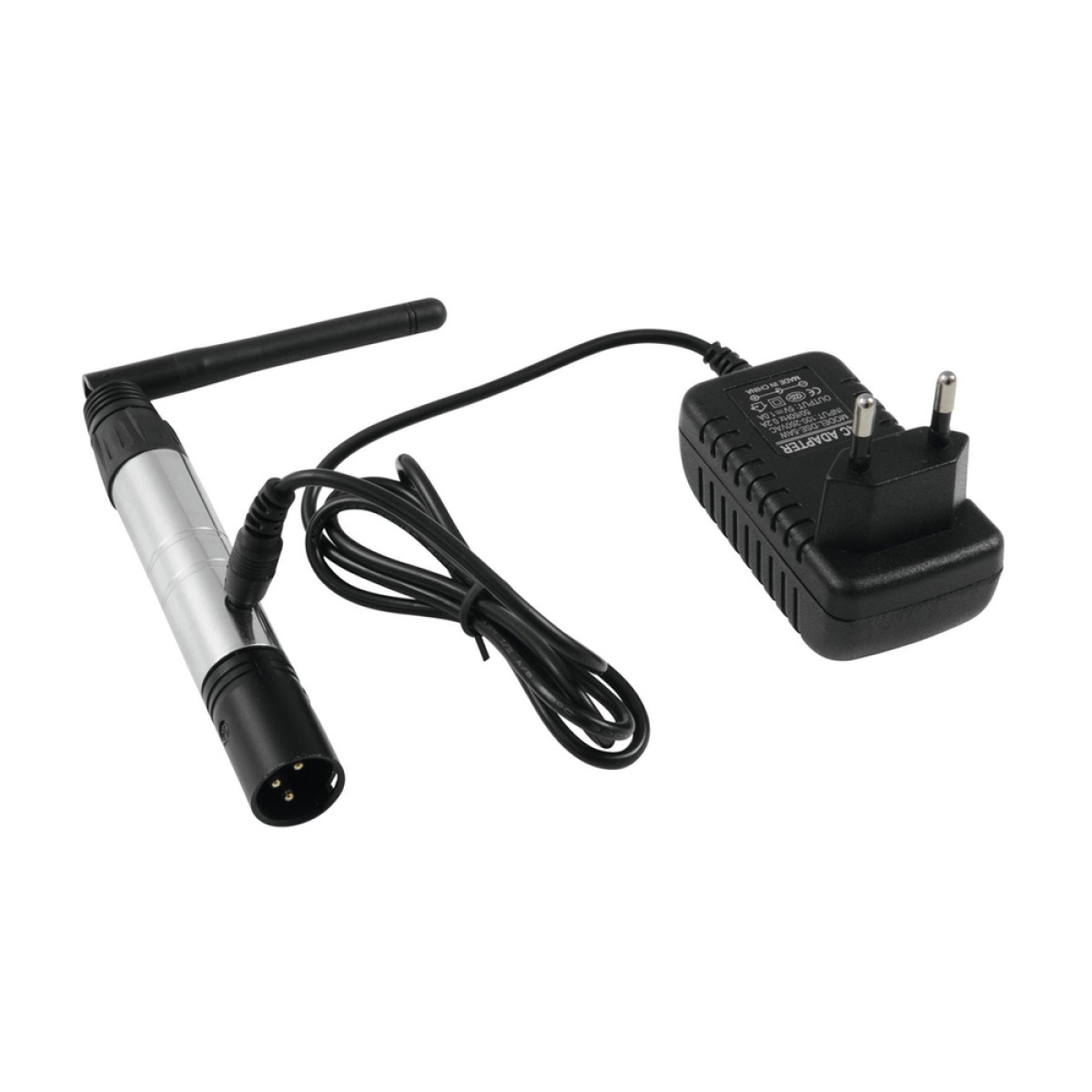

Wireless DMX transmitter 2.4 GHz
Miniature wireless DMX transmitter for the wireless transmission of up to 512 DMX channels

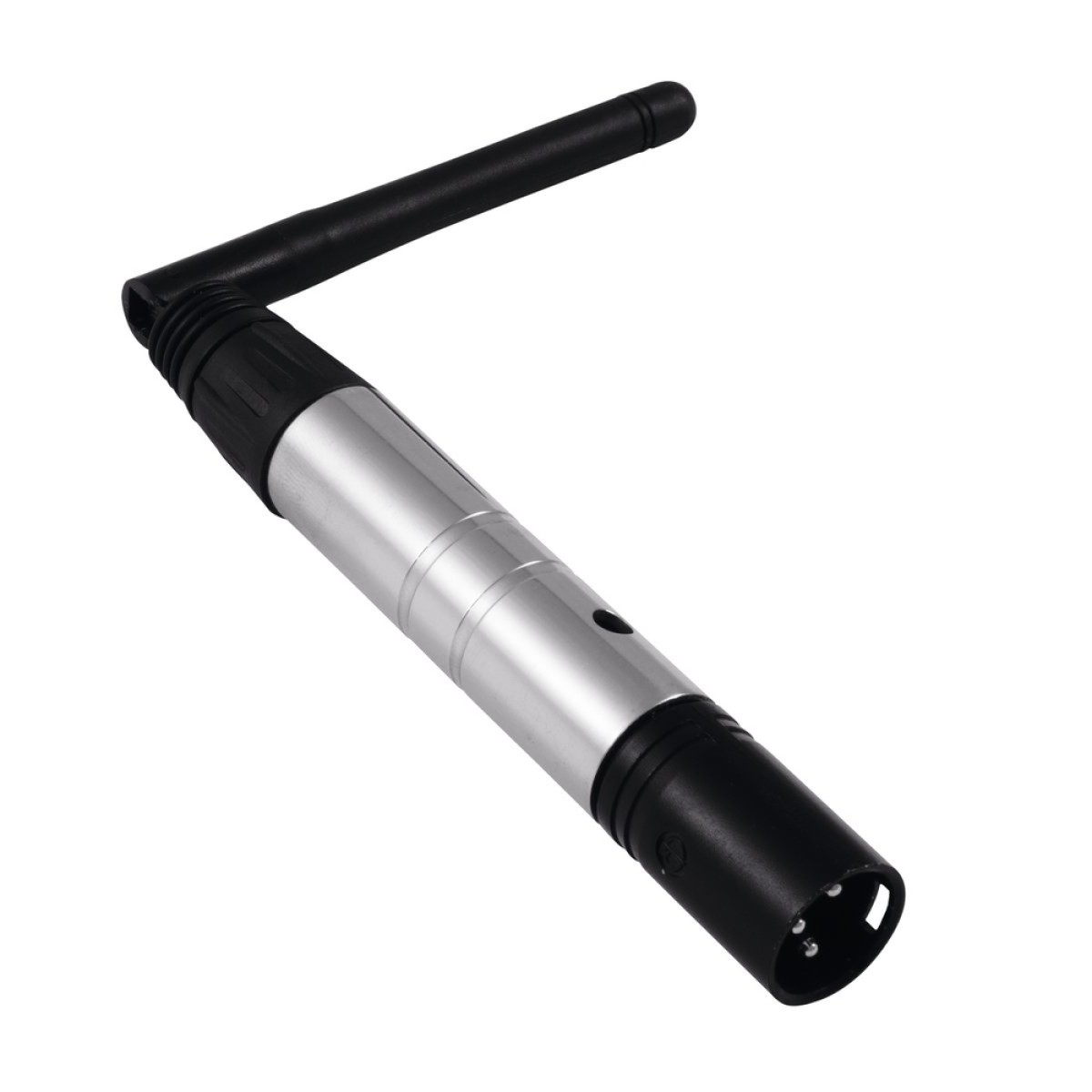

User-friendly 3-pin XLR plug (male) with swivel antenna
Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
Operating range up to 400 m (with line-of-sight)
Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
1 to 512 QuickDMX receivers can be controlled by each transmitter
Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
LED indication for functions
Transceiver, to be used as transmitter or receiver
Powered via included PSU
2.4 GHz ISM band - license-free worldwide
Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
Control: QuickDMX; DMX
Miniature wireless DMX transmitter for the wireless transmission of up to 512 DMX channels
User-friendly 3-pin XLR plug (male) with swivel antenna
Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
Operating range up to 400 m (with line-of-sight)
Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
1 to 512 QuickDMX receivers can be controlled by each transmitter
Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
LED indication for functions
Transceiver, to be used as transmitter or receiver
Powered via included PSU
2.4 GHz ISM band - license-free worldwide
Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
Control: QuickDMX; DMX
More
Less
Reviews
0 reviews
Write a review
Description
Wireless DMX transmitter 2.4 GHz
Miniature wireless DMX transmitter for the wireless transmission of up to 512 DMX channels
User-friendly 3-pin XLR plug (male) with swivel antenna
Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
Operating range up to 400 m (with line-of-sight)
Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
1 to 512 QuickDMX receivers can be controlled by each transmitter
Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
LED indication for functions
Transceiver, to be used as transmitter or receiver
Powered via included PSU
2.4 GHz ISM band - license-free worldwide
Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
Control: QuickDMX; DMX
Miniature wireless DMX transmitter for the wireless transmission of up to 512 DMX channels
User-friendly 3-pin XLR plug (male) with swivel antenna
Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
Operating range up to 400 m (with line-of-sight)
Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
1 to 512 QuickDMX receivers can be controlled by each transmitter
Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
LED indication for functions
Transceiver, to be used as transmitter or receiver
Powered via included PSU
2.4 GHz ISM band - license-free worldwide
Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
Control: QuickDMX; DMX
Attributes
Attributes
| Catalog | Lights |
| Category | REMOTE DMX |
| Manufacturer | EUROLITE |
| Measurement Unit | PIECE |
| Order Quantity | 1 |
| Use | TRANSMITTERS |
| Warranty Months | 12 |
