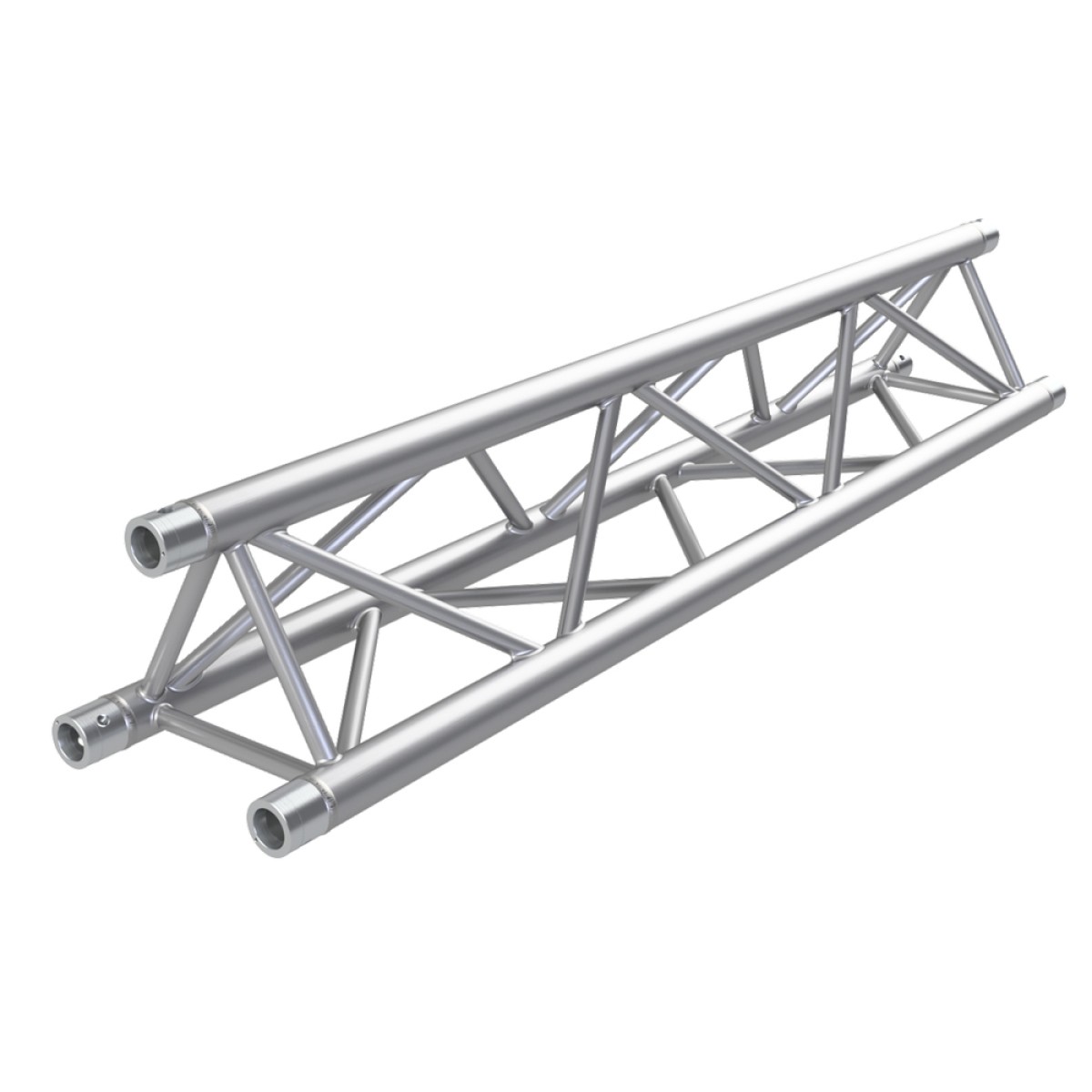

EUROTRUSS TRIANGLE TRUSS 0,5m
Product Code:FD33-050
Available
FD33, 0,50m, the triangular truss with equilateral profile geometry for larger loads.
The FD33 straight elements lend themselves perfectly for making bending stress resistant spans up to 12 meters (39 feet). Designed for high frequency usage or installations, which demands higher loading.
Made with the fast connection system and approved according the DIN EN 1999-1-1 & 1999-1-1/A2 (Eurocode 9).
Facts
TUV approved
Also available in any non-standard length and shape
Tolerance free conical connector system
TECHNICAL SPECIFICATIONS
Height 258 mm / 10.16 in
Width 290 mm / 11.42 in
Main Tube50 x 2 mm / 1.97 x 0.08 in
Braces 20 x 2 mm / 0.79 x 0.08 in
Weight ~4,5 kg/m / ~3 lbs/ft
Pin Position Diagonal
Material EN AW-6082 T6
Connection CS1 - CON
The FD33 straight elements lend themselves perfectly for making bending stress resistant spans up to 12 meters (39 feet). Designed for high frequency usage or installations, which demands higher loading.
Made with the fast connection system and approved according the DIN EN 1999-1-1 & 1999-1-1/A2 (Eurocode 9).
Facts
TUV approved
Also available in any non-standard length and shape
Tolerance free conical connector system
TECHNICAL SPECIFICATIONS
Height 258 mm / 10.16 in
Width 290 mm / 11.42 in
Main Tube50 x 2 mm / 1.97 x 0.08 in
Braces 20 x 2 mm / 0.79 x 0.08 in
Weight ~4,5 kg/m / ~3 lbs/ft
Pin Position Diagonal
Material EN AW-6082 T6
Connection CS1 - CON
More
Less
116,99€
167,40€
Reviews
0 reviews
Write a review
Description
FD33, 0,50m, the triangular truss with equilateral profile geometry for larger loads.
The FD33 straight elements lend themselves perfectly for making bending stress resistant spans up to 12 meters (39 feet). Designed for high frequency usage or installations, which demands higher loading.
Made with the fast connection system and approved according the DIN EN 1999-1-1 & 1999-1-1/A2 (Eurocode 9).
Facts
TUV approved
Also available in any non-standard length and shape
Tolerance free conical connector system
TECHNICAL SPECIFICATIONS
Height 258 mm / 10.16 in
Width 290 mm / 11.42 in
Main Tube50 x 2 mm / 1.97 x 0.08 in
Braces 20 x 2 mm / 0.79 x 0.08 in
Weight ~4,5 kg/m / ~3 lbs/ft
Pin Position Diagonal
Material EN AW-6082 T6
Connection CS1 - CON
The FD33 straight elements lend themselves perfectly for making bending stress resistant spans up to 12 meters (39 feet). Designed for high frequency usage or installations, which demands higher loading.
Made with the fast connection system and approved according the DIN EN 1999-1-1 & 1999-1-1/A2 (Eurocode 9).
Facts
TUV approved
Also available in any non-standard length and shape
Tolerance free conical connector system
TECHNICAL SPECIFICATIONS
Height 258 mm / 10.16 in
Width 290 mm / 11.42 in
Main Tube50 x 2 mm / 1.97 x 0.08 in
Braces 20 x 2 mm / 0.79 x 0.08 in
Weight ~4,5 kg/m / ~3 lbs/ft
Pin Position Diagonal
Material EN AW-6082 T6
Connection CS1 - CON
Attributes
Attributes
| Catalog | Lights |
| Category | TRUSSES - LAMP BARS - STAGE DECKS |
| Manufacturer | EUROTRUSS |
| Measurement Unit | PIECE |
| Order Quantity | 1 |
| Use | TRIANGLE TRUSS |
| Warranty Months | 12 |
