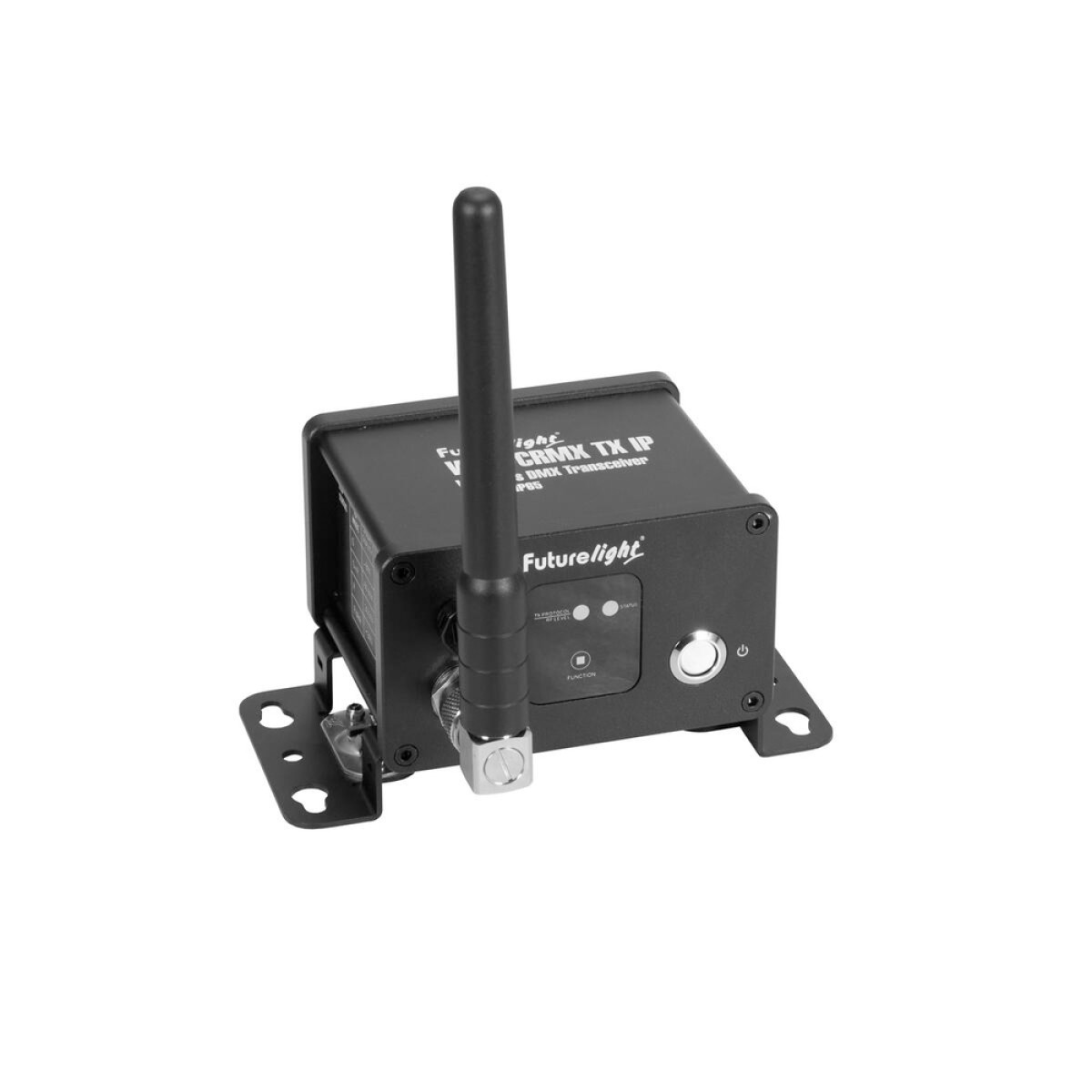

FUTURELIGHT WIRELESS DMX TRANSCEIVER OUTDOOR

WDS-CRMX TX IP WIRELESS (51834031
Weather-proof wireless DMX transceiver, IP65
Transceiver, to be used as transmitter or receiver [ Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
Can receive and process up to 512 DMX channels / Can transmit up to 512 DMX channels / Multicolored LED indicator
Lockable power input (IP T-Con) ] Control via W-DMX by wireless solution; CRMX by LumenRadio ] 2.4 GHz license-free worldwide
Operating range up to 600m with line-of-sight ] Up to 10 transmitters can be operated in parallel without interference ] OLED display

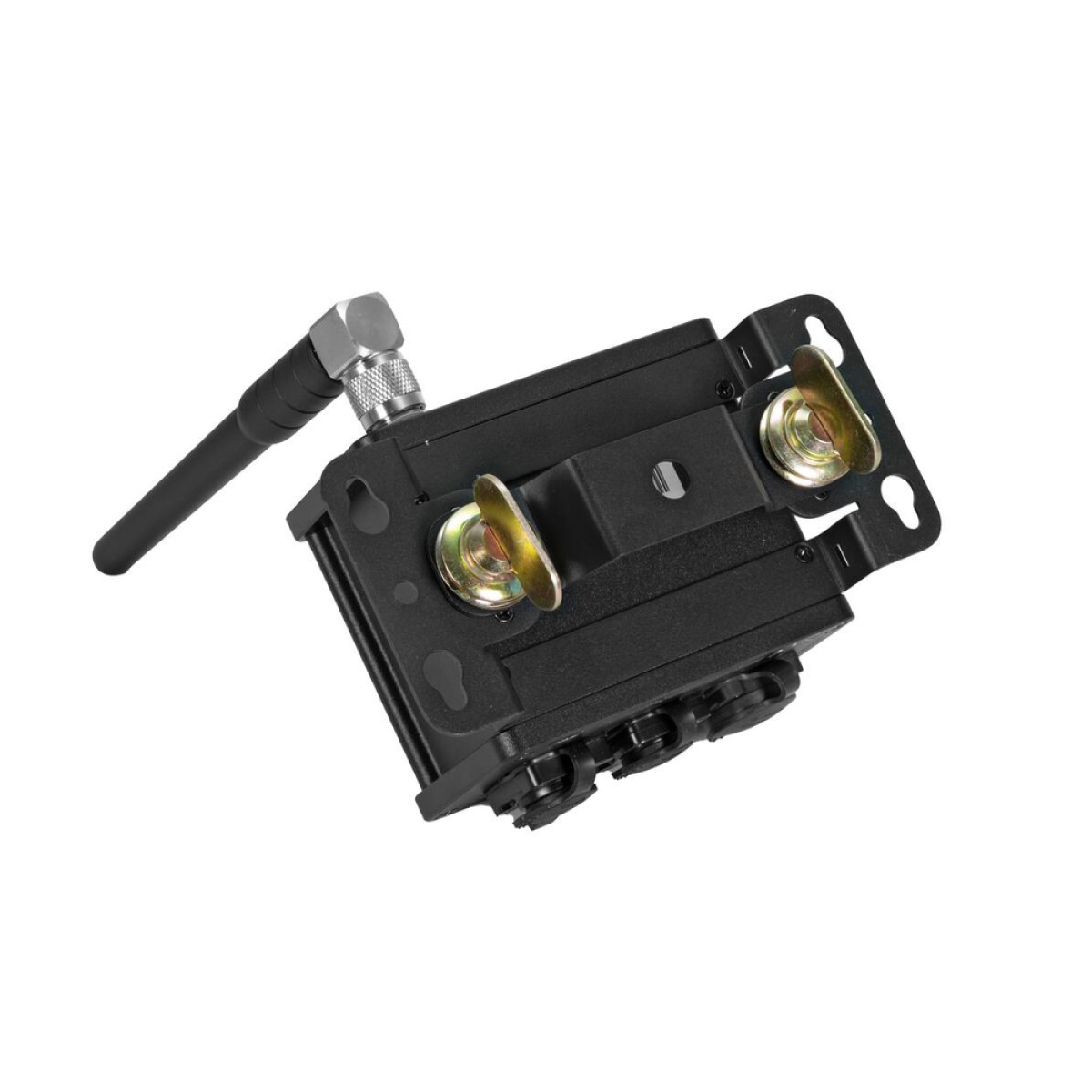

With omega bracket ] Suitable for outdoor use IP65

Technical specifications
Power supply: 100-240 V AC, 50/60 Hz ] Power consumption:1.6 W IP classification: IP65 ] Protection class: Protection class I

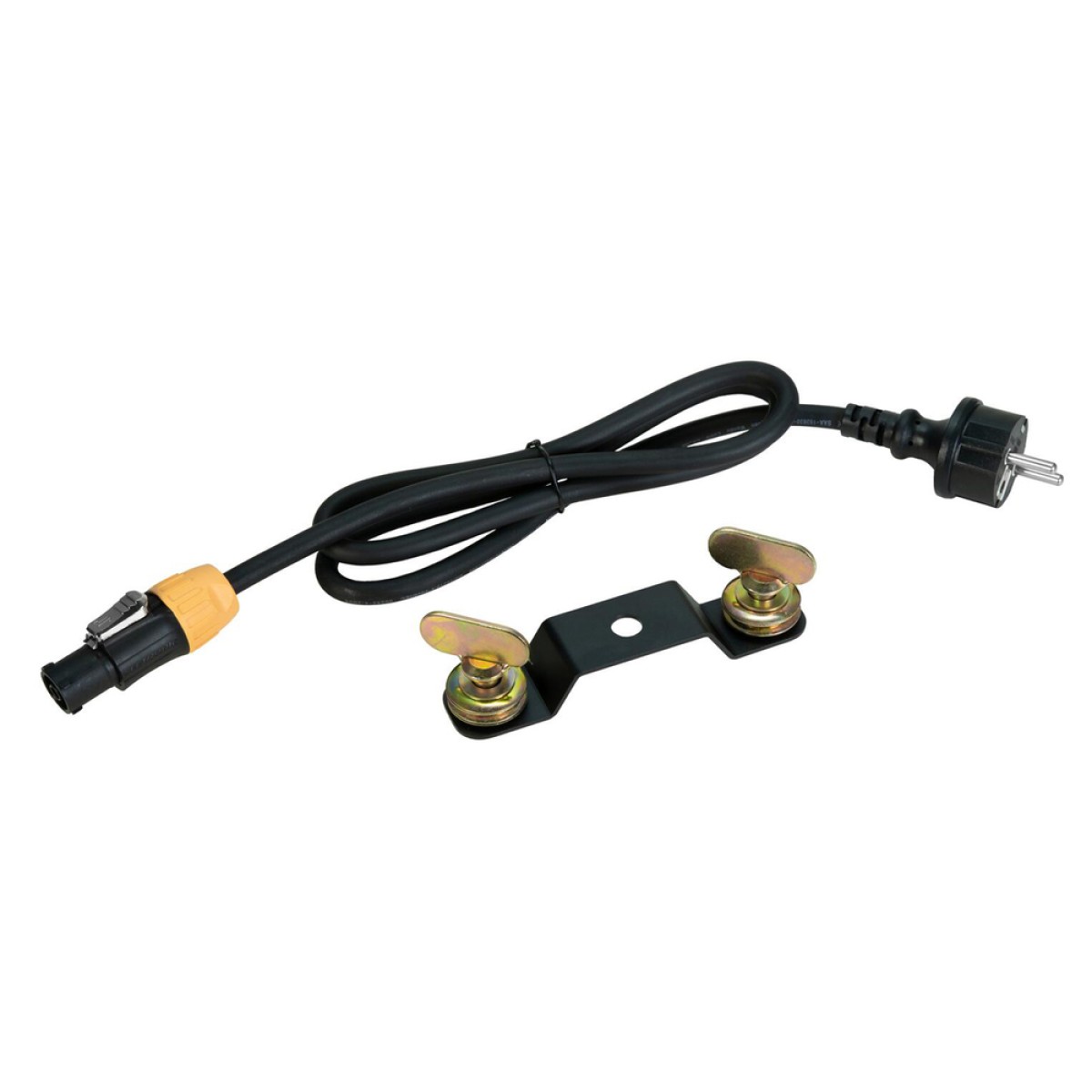

Power connection: Mains input via IP T-Con (M) mounting version power supply cord with safety plug ] DMX channels: Input 512

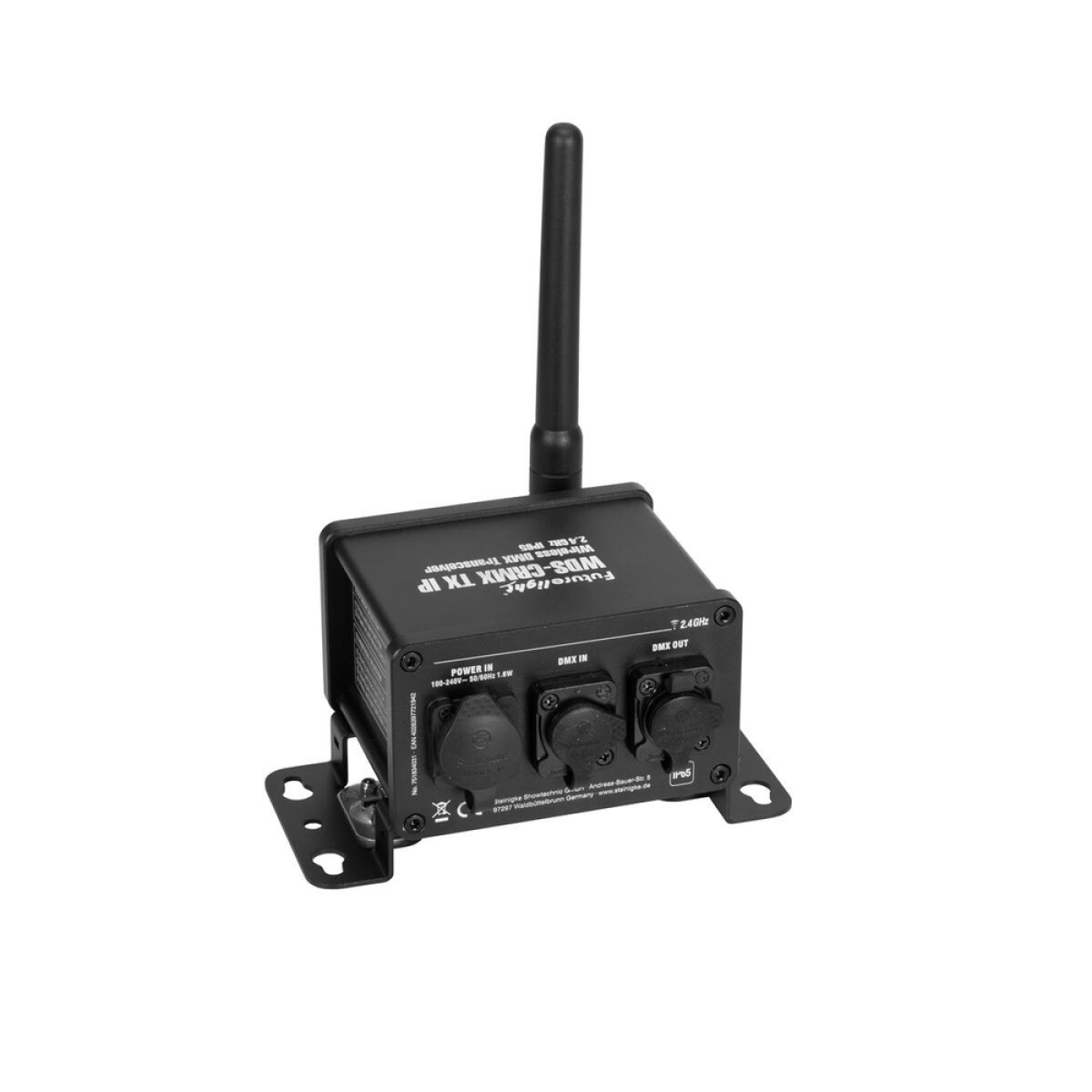

Output 512 ] DMX input: 1 x 3-pin XLR (M) mounting version IP / DMX output: 1 x 3-pin XLR (F) mounting version IP
Control: W-DMX by wireless solution; CRMX by LumenRadio Range: Range up to 600m with line-of-sight] Frequency band:2.4 GHz
Parallel mode: Max. 10 transmitter ] Antenna gain: 5 dBi ] Modulation: GFSK ] Attachment system: Omega bracket ] Display type: OLED display ] Status LED: DMX, level meter/ Color: Black ] Dimensions: Length: 17.3 cm ] Width: 15.6 cm ] Height: 9.2 cm ] Weight:1.30 kg
