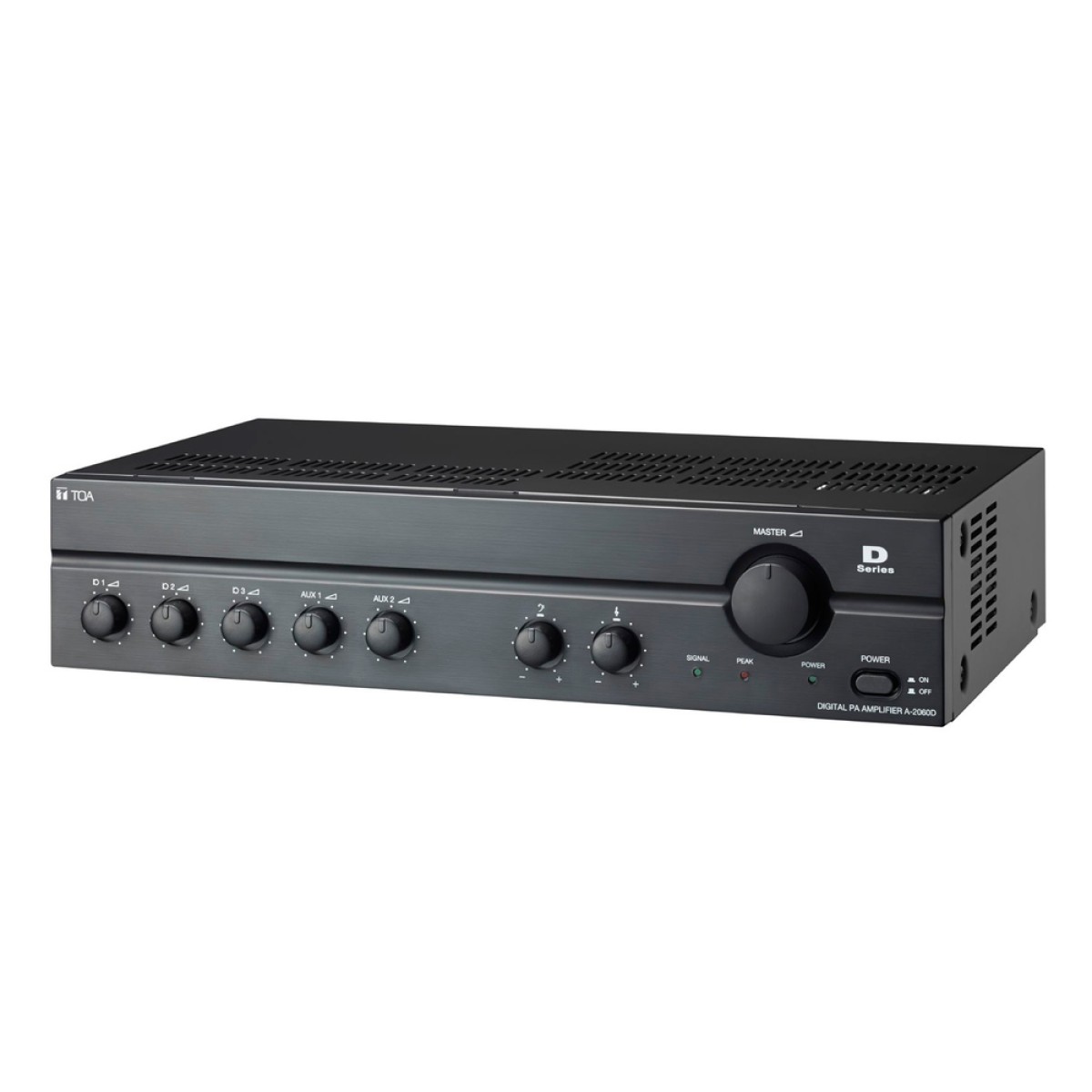

TOA ΜΙΚΤΗΣ ΕΝΙΣΧΥΤΗΣ 5 ΕΙΣΟΔΩΝ 120W 100V

120 W mixing amplifier featuring high cost-performance. Each model of this series is suitable for commercial audio systems in schools, offices, shops, factories, houses of worship, and large meeting rooms. Theamplifier is equipped with balanced mic. inputs for better isolation from external noise, compared to unbalanced inputs. Improved durability and offers a comfortable acoustic space thanks to tone control at bass and treble. Other features: Both AC and DC operation possible. Phantom power provided to MIC1, for supplying power to a condenser microphone. Easy to handle. Scratch- and fingerprint-resistant finish. Easy and quick volume control with master volume knob.

Spec Power Source 220 - 240V AC or 24V DC
Rated Output 120 W
Power Consumption 124W (EN60065), 260W (AC operation at rated output), 8A (DC operation at rated output)

Frequency Response 50 - 20,000Hz (±3dB)
Distortion Under 1% at 1kHz, 1/3 rated power
Input MIC 1: -60dB*, 600Ω, electronically balanced, 5-P DIN type, MIC 2, 3: -60dB*, 600Ω, electronically balanced, phone jack, AUX 1, 2: -20dB*, 10kΩ, unbalanced, RCA pin jack 100V line in: 40dB*, 330kΩ, Mute: Contact Pin 4 - 5 Closure input (for MIC 1)
Output Speaker out Balanced (floating) , High impedance83Ω (100V), 42Ω (70V) , Low impedance 4Ω (22V), Rec. out 0dB*, 600Ω, unbalanced, RCA pin jack
S/N Ratio Over 60dB
Tone Control Bass: ±10dB at 100Hz/Treble: ±10dB at 10kHz

Muting MIC 1 Mutes other input signals by 0 - 30dB attenuation
Indicator Power, signal, peak
Finish Panel: ABS resin, black/Case: Steel plate, black
Dimensions 420 (W) 100.9 (H) 360.3 (D)mm
Weight 10.8 kg
