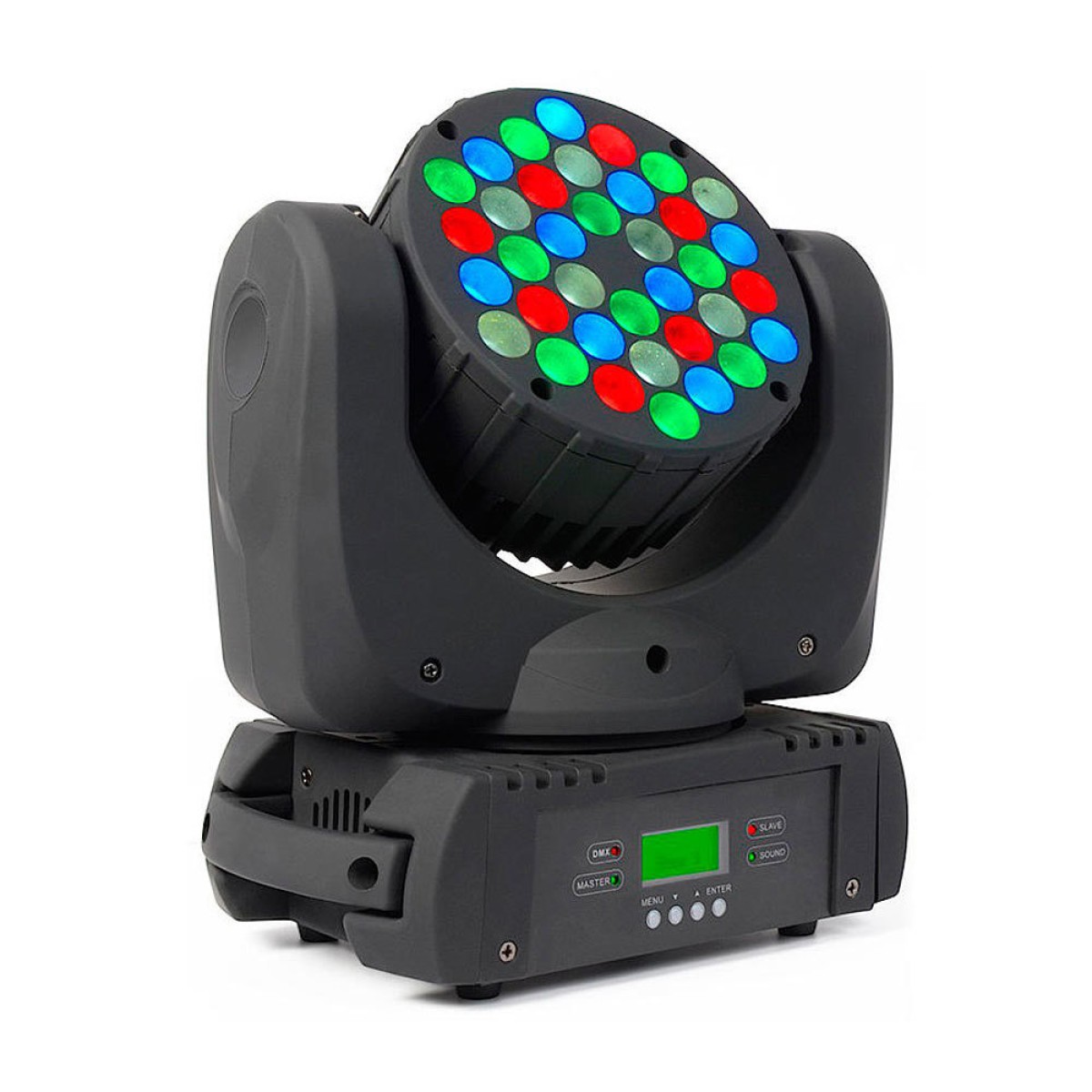

PLS LED ΒΕΑΜ MOVING HEAD WITH 36X3W RGBW LEDS 8°
Product Code:ST-3603B
Out of stock
36*3W INNO Color Beam LED CREE RGBW
User modes: Automatic, Music, Master / Slave, DMX-512
DMX-512: 9,12 or 16 channels selectable
Pan movement: 540 degree
Tilt movement: 270 degree
Lamp: CREE 3W LED 36PCS RGBW
Lamp life: 50000hrs
Power consumption: 150W
Power supply: AC100-250V, 60/50Hz
Working Voltage: DC 24V
Beam angle: 8 degree Gaggione lens
Output:2700 LX with distance of 1 meters(Full color)
Best distance to illuminate: 10-20 meters
Low-noisy fan for silent environment
PFC power factor compensation
Rotation: Pan / Tilt rotates in silent mode
Control signal: DMX512, master/slave, sound control, and auto
Up to IP20 degree of protection
Automatic Pan and Tilt re-positioning system if accidentally knocked out
of place and with correct positioning function
Display: using beautiful blue and white LCD display
Shell: new cabinet streamlined PC engineering plastic shell, once
molding
Mixing color system: R,G,B,W mixing colors infinitely
High speed electronic adjusting strobe : 1-13 times per second
3 pin XLR-connection sockets
Digital strobe, speed adjustable (0~~100%)
Digital dimmer (0~~100%)
Built-in movement macros master/slave or DMX
LED display menu with invert
Fan cooled
ID settable by DMX controller
Customized color selectable with the device, activated by the DMX controller
Dimension: 267x167x304mm
Carton size: 325x250x410mm
Net weight: 5.0kgs
Gross weight: 6.0kgs
User modes: Automatic, Music, Master / Slave, DMX-512
DMX-512: 9,12 or 16 channels selectable
Pan movement: 540 degree
Tilt movement: 270 degree
Lamp: CREE 3W LED 36PCS RGBW
Lamp life: 50000hrs
Power consumption: 150W
Power supply: AC100-250V, 60/50Hz
Working Voltage: DC 24V
Beam angle: 8 degree Gaggione lens
Output:2700 LX with distance of 1 meters(Full color)
Best distance to illuminate: 10-20 meters
Low-noisy fan for silent environment
PFC power factor compensation
Rotation: Pan / Tilt rotates in silent mode
Control signal: DMX512, master/slave, sound control, and auto
Up to IP20 degree of protection
Automatic Pan and Tilt re-positioning system if accidentally knocked out
of place and with correct positioning function
Display: using beautiful blue and white LCD display
Shell: new cabinet streamlined PC engineering plastic shell, once
molding
Mixing color system: R,G,B,W mixing colors infinitely
High speed electronic adjusting strobe : 1-13 times per second
3 pin XLR-connection sockets
Digital strobe, speed adjustable (0~~100%)
Digital dimmer (0~~100%)
Built-in movement macros master/slave or DMX
LED display menu with invert
Fan cooled
ID settable by DMX controller
Customized color selectable with the device, activated by the DMX controller
Dimension: 267x167x304mm
Carton size: 325x250x410mm
Net weight: 5.0kgs
Gross weight: 6.0kgs
More
Less
Description
36*3W INNO Color Beam LED CREE RGBW
User modes: Automatic, Music, Master / Slave, DMX-512
DMX-512: 9,12 or 16 channels selectable
Pan movement: 540 degree
Tilt movement: 270 degree
Lamp: CREE 3W LED 36PCS RGBW
Lamp life: 50000hrs
Power consumption: 150W
Power supply: AC100-250V, 60/50Hz
Working Voltage: DC 24V
Beam angle: 8 degree Gaggione lens
Output:2700 LX with distance of 1 meters(Full color)
Best distance to illuminate: 10-20 meters
Low-noisy fan for silent environment
PFC power factor compensation
Rotation: Pan / Tilt rotates in silent mode
Control signal: DMX512, master/slave, sound control, and auto
Up to IP20 degree of protection
Automatic Pan and Tilt re-positioning system if accidentally knocked out
of place and with correct positioning function
Display: using beautiful blue and white LCD display
Shell: new cabinet streamlined PC engineering plastic shell, once
molding
Mixing color system: R,G,B,W mixing colors infinitely
High speed electronic adjusting strobe : 1-13 times per second
3 pin XLR-connection sockets
Digital strobe, speed adjustable (0~~100%)
Digital dimmer (0~~100%)
Built-in movement macros master/slave or DMX
LED display menu with invert
Fan cooled
ID settable by DMX controller
Customized color selectable with the device, activated by the DMX controller
Dimension: 267x167x304mm
Carton size: 325x250x410mm
Net weight: 5.0kgs
Gross weight: 6.0kgs
User modes: Automatic, Music, Master / Slave, DMX-512
DMX-512: 9,12 or 16 channels selectable
Pan movement: 540 degree
Tilt movement: 270 degree
Lamp: CREE 3W LED 36PCS RGBW
Lamp life: 50000hrs
Power consumption: 150W
Power supply: AC100-250V, 60/50Hz
Working Voltage: DC 24V
Beam angle: 8 degree Gaggione lens
Output:2700 LX with distance of 1 meters(Full color)
Best distance to illuminate: 10-20 meters
Low-noisy fan for silent environment
PFC power factor compensation
Rotation: Pan / Tilt rotates in silent mode
Control signal: DMX512, master/slave, sound control, and auto
Up to IP20 degree of protection
Automatic Pan and Tilt re-positioning system if accidentally knocked out
of place and with correct positioning function
Display: using beautiful blue and white LCD display
Shell: new cabinet streamlined PC engineering plastic shell, once
molding
Mixing color system: R,G,B,W mixing colors infinitely
High speed electronic adjusting strobe : 1-13 times per second
3 pin XLR-connection sockets
Digital strobe, speed adjustable (0~~100%)
Digital dimmer (0~~100%)
Built-in movement macros master/slave or DMX
LED display menu with invert
Fan cooled
ID settable by DMX controller
Customized color selectable with the device, activated by the DMX controller
Dimension: 267x167x304mm
Carton size: 325x250x410mm
Net weight: 5.0kgs
Gross weight: 6.0kgs
Attributes
Attributes
| Catalog | Lights |
| Category | MOVING HEADS - SCANNERS |
| Color | Black/Μαύρο |
| Color Mixtype | RGBW |
| Depth (cm) | 16 |
| DMX Channels (Multi Mode) | 9/12/16 |
| Effect Wheel | No |
| Focus | No |
| Frost | No |
| Gobo Wheel | No |
| Height (cm) | 26 |
| IP Rating | 20 |
| IRIS | No |
| Lamp Category | SINGLE COLOR LED |
| Lamp Type | LED |
| Lamps Ammount | 36 |
| Lighting Type | WASH |
| Manufacturer | PLS |
| Measurement Unit | PIECE |
| Operating Mode | DMX |
| Optional Lens | No |
| Order Quantity | 1 |
| Power of the Light (Watt) | 108 |
| Power supply (V) | 100V/240V |
| Shutters | No |
| Use | LED WASH MOVING HEADS |
| Warranty Months | 24 |
| Weight (Kg) | 4.6 |
| Width (cm) | 30 |
| Zoom | No |
