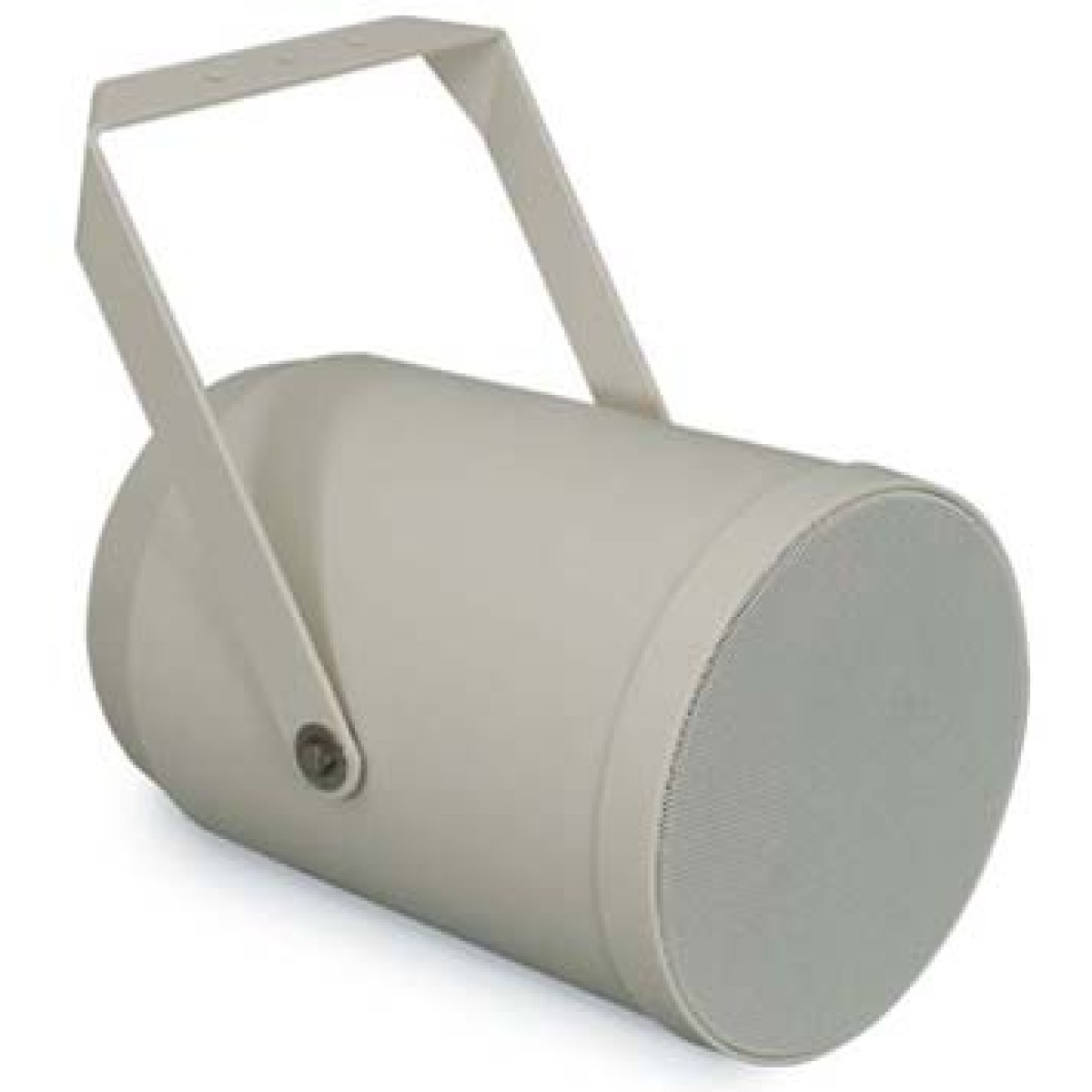

WORK HORN SPEAKER 100V 20W/10W/5W 6,5'' FULLR. 92dB IP55
Product Code:CS 323 T
Out of stock
Sound projectors made of ABS plastic and aluminium are designed to precisely control the orientation of the sound. They all feature an axial cone woofer (full range), a wide frequency range and a SPL system which improves sound orientation. Their transformer makes them suitable for several type of installations. They are particularly adequate for areas with background noise like train stations and airports.
Type: Sound Projector full range.
EIements: 6.5 "woofer.
Power (100 V line): 20 W (500 ohm) / 10 W (1k ohm) / 5 W (2k ohm).
Power (70 V line): 10 W (490 ohm) / 5 W (980 ohm) / 2.5 W (1k96 ohm).
Frequency response: 110 Hz - 15 kHz.
Sensitivity (1W/1m): 92 dB.
Max. SPL: 108 dB.
IP Rating: IP 55.
RAL color: RAL 9016.
Enclosure Material): ABS Plastic.
Material (grid): Aluminum.
Dimensions: ? 170 x 245 mm.
Weight: 1.6 kg.
Type: Sound Projector full range.
EIements: 6.5 "woofer.
Power (100 V line): 20 W (500 ohm) / 10 W (1k ohm) / 5 W (2k ohm).
Power (70 V line): 10 W (490 ohm) / 5 W (980 ohm) / 2.5 W (1k96 ohm).
Frequency response: 110 Hz - 15 kHz.
Sensitivity (1W/1m): 92 dB.
Max. SPL: 108 dB.
IP Rating: IP 55.
RAL color: RAL 9016.
Enclosure Material): ABS Plastic.
Material (grid): Aluminum.
Dimensions: ? 170 x 245 mm.
Weight: 1.6 kg.
More
Less
67,32€
74,76€
Reviews
0 reviews
Write a review
Description
Sound projectors made of ABS plastic and aluminium are designed to precisely control the orientation of the sound. They all feature an axial cone woofer (full range), a wide frequency range and a SPL system which improves sound orientation. Their transformer makes them suitable for several type of installations. They are particularly adequate for areas with background noise like train stations and airports.
Type: Sound Projector full range.
EIements: 6.5 "woofer.
Power (100 V line): 20 W (500 ohm) / 10 W (1k ohm) / 5 W (2k ohm).
Power (70 V line): 10 W (490 ohm) / 5 W (980 ohm) / 2.5 W (1k96 ohm).
Frequency response: 110 Hz - 15 kHz.
Sensitivity (1W/1m): 92 dB.
Max. SPL: 108 dB.
IP Rating: IP 55.
RAL color: RAL 9016.
Enclosure Material): ABS Plastic.
Material (grid): Aluminum.
Dimensions: ? 170 x 245 mm.
Weight: 1.6 kg.
Type: Sound Projector full range.
EIements: 6.5 "woofer.
Power (100 V line): 20 W (500 ohm) / 10 W (1k ohm) / 5 W (2k ohm).
Power (70 V line): 10 W (490 ohm) / 5 W (980 ohm) / 2.5 W (1k96 ohm).
Frequency response: 110 Hz - 15 kHz.
Sensitivity (1W/1m): 92 dB.
Max. SPL: 108 dB.
IP Rating: IP 55.
RAL color: RAL 9016.
Enclosure Material): ABS Plastic.
Material (grid): Aluminum.
Dimensions: ? 170 x 245 mm.
Weight: 1.6 kg.
Attributes
Attributes
| Catalog | Professional |
| Category | SPEAKERS |
| Color | White/Λευκό |
| Depth (cm) | 24.5 |
| Freq From (Hz) | 110 |
| Freq Up to (Hz) | 15000 |
| Height (cm) | 17 |
| Impedance | 100V/70V |
| IP Rating | 55 |
| Low Speaker Size | 6.5'' |
| Manufacturer | WORK |
| Max SPL Output (dB) | 108 |
| Measurement Unit | PIECE |
| Order Quantity | 1 |
| Power Rating Watt/V | 20 |
| Shell Material | Plastic/Synthetic |
| Speaker System | Full Range |
| Speaker Type | Passive/Παθητικό |
| Use | CORNES |
| Warranty Months | 12 |
| Weight (Kg) | 2.8 |
