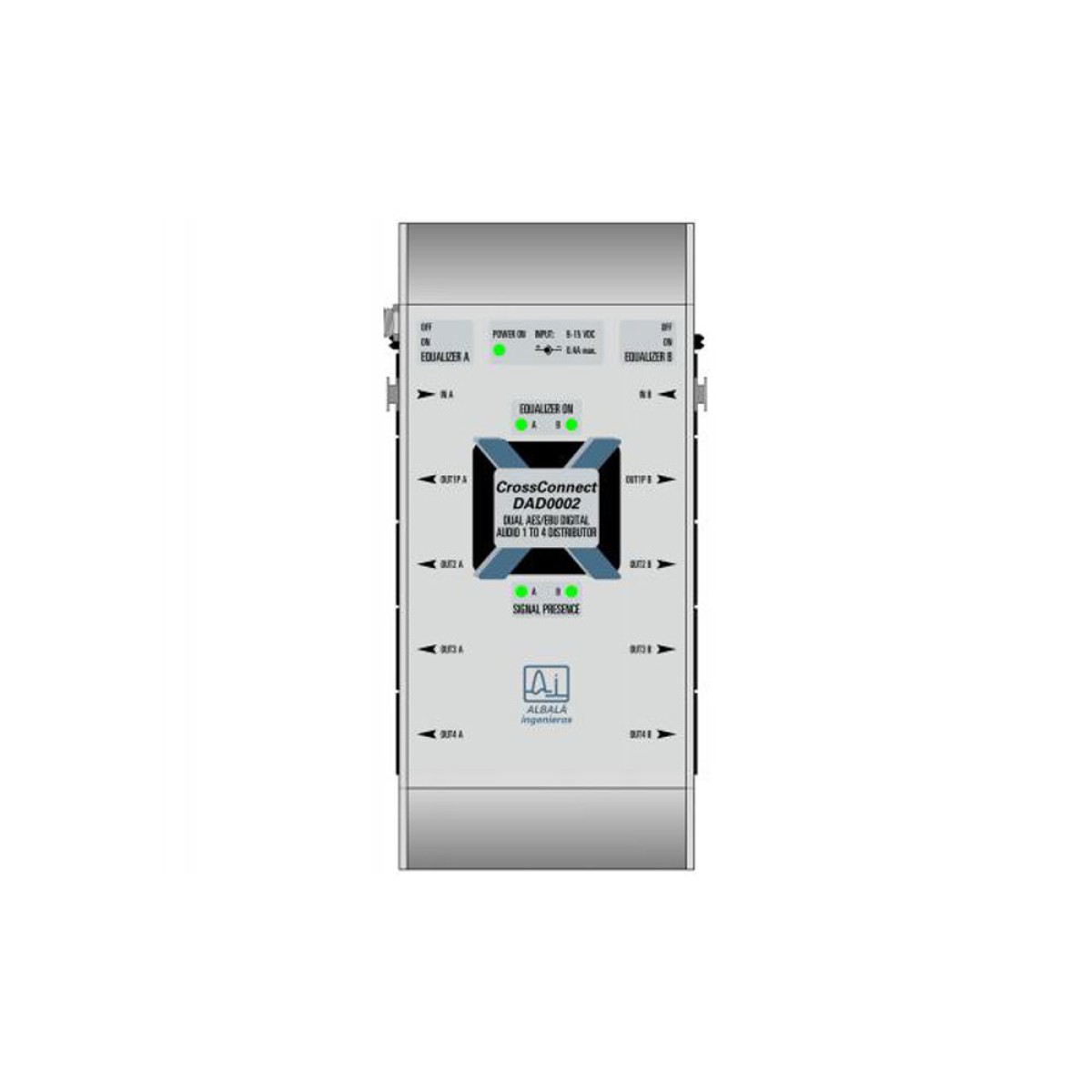

ALBALA DIGITAL AUDIO DISTRIBUTOR STAND-ALONE DUAL 1IN TO 4OUT AES/EBU

The DAD0002C01 module is a distributor for balanced digital signals with four outputs per section and two identical sections. The input is loaded and transformer isolated. Each output is also transformer isolated. A LED on the front panel indicates input signal presence for each section.
The distributor is based upon lineal amplifiers and performs no manipulation on the signals received. Although this module has been designed to operate with balanced AES/EBU signals, due to the lack of internal processing the DAD0002C01 is capable of distributing other digital signals transmitted over balanced cabling as long as the signals are within the specified bandwidth.
