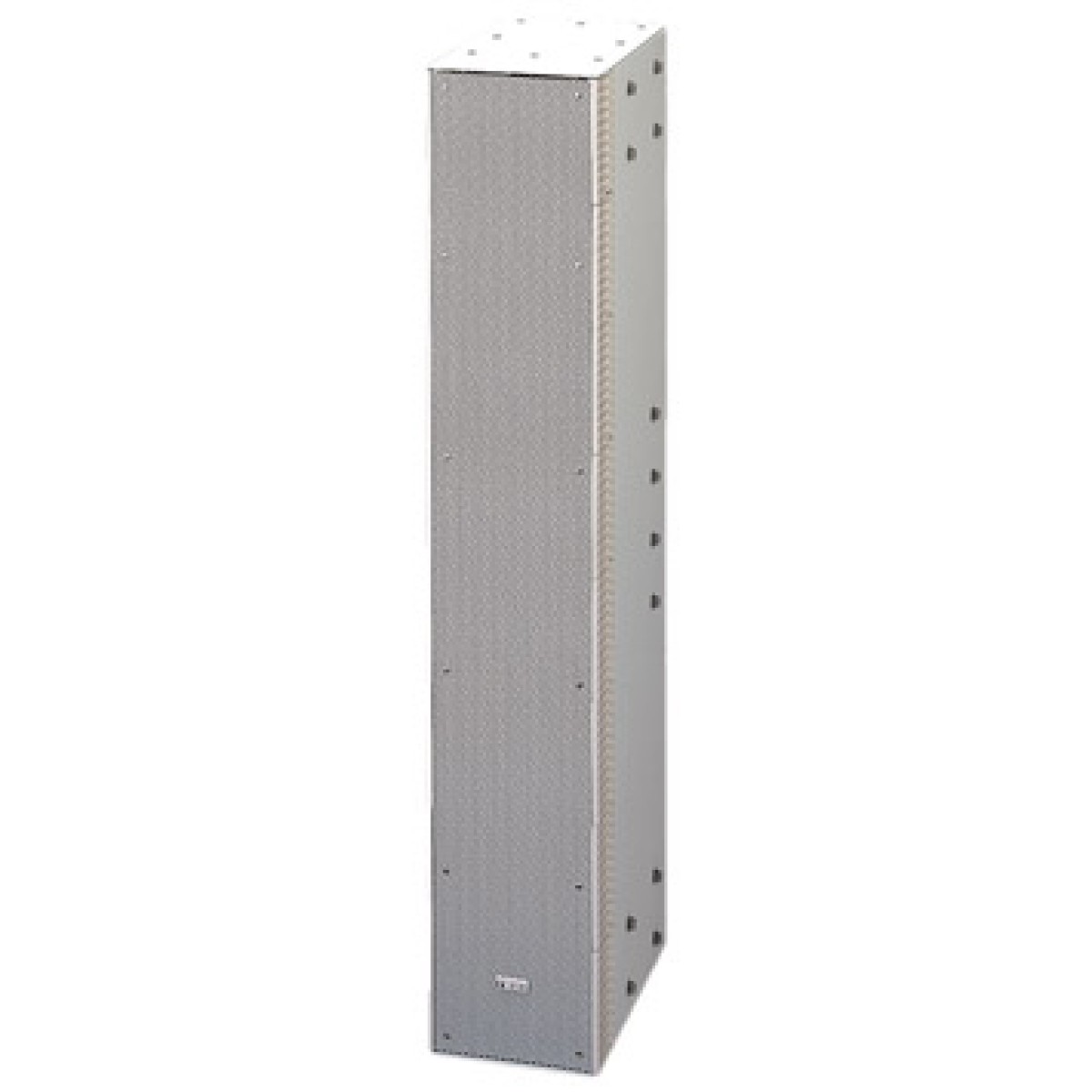

TOA COLUMN SPEAKER 2 WAYS 600W 8X4''+24x1'' 8Ω 93dB
Product Code:SR-S4SWP
Out of stock
The SR-S4SWP is a two-way line array speaker ideal for short distance sound transmission and configures a line array by arranging speaker elements vertically close to each other. It satisfies the water protection requirements set down in the IPX4 Standard. It can be converted into the bi-amplifier drive system by changing the internal connection. It can be used for high-impedance applications with the installation of the optional MT-S0601Matching Transformer.
Spec Enclosure Sealed type
Power Handling Capacity Continuous program: 600W
Rated Impedance 8 ohms
Sensitivity 93dB (1W, 1m)
Frequency Response 70-20,000Hz (when using DP-0206 option)
Crossover Frequency 3,500Hz
Directivity Angle Horizontal: 90°, Vertical: 10°
Speaker Component Low frequency: 10cm cone-type 8, High frequency: 2.5cm balanced dome-type 24
Water Protection IPX4
Dimensions 160 (W) 892 (H) 303 (D)mm (excluding connected cable)
Spec Enclosure Sealed type
Power Handling Capacity Continuous program: 600W
Rated Impedance 8 ohms
Sensitivity 93dB (1W, 1m)
Frequency Response 70-20,000Hz (when using DP-0206 option)
Crossover Frequency 3,500Hz
Directivity Angle Horizontal: 90°, Vertical: 10°
Speaker Component Low frequency: 10cm cone-type 8, High frequency: 2.5cm balanced dome-type 24
Water Protection IPX4
Dimensions 160 (W) 892 (H) 303 (D)mm (excluding connected cable)
More
Less
2.168,61€
2.409,17€
Reviews
0 reviews
Write a review
Description
The SR-S4SWP is a two-way line array speaker ideal for short distance sound transmission and configures a line array by arranging speaker elements vertically close to each other. It satisfies the water protection requirements set down in the IPX4 Standard. It can be converted into the bi-amplifier drive system by changing the internal connection. It can be used for high-impedance applications with the installation of the optional MT-S0601Matching Transformer.
Spec Enclosure Sealed type
Power Handling Capacity Continuous program: 600W
Rated Impedance 8 ohms
Sensitivity 93dB (1W, 1m)
Frequency Response 70-20,000Hz (when using DP-0206 option)
Crossover Frequency 3,500Hz
Directivity Angle Horizontal: 90°, Vertical: 10°
Speaker Component Low frequency: 10cm cone-type 8, High frequency: 2.5cm balanced dome-type 24
Water Protection IPX4
Dimensions 160 (W) 892 (H) 303 (D)mm (excluding connected cable)
Spec Enclosure Sealed type
Power Handling Capacity Continuous program: 600W
Rated Impedance 8 ohms
Sensitivity 93dB (1W, 1m)
Frequency Response 70-20,000Hz (when using DP-0206 option)
Crossover Frequency 3,500Hz
Directivity Angle Horizontal: 90°, Vertical: 10°
Speaker Component Low frequency: 10cm cone-type 8, High frequency: 2.5cm balanced dome-type 24
Water Protection IPX4
Dimensions 160 (W) 892 (H) 303 (D)mm (excluding connected cable)
Attributes
Attributes
| Catalog | Professional |
| Category | SPEAKERS |
| Color | White/Λευκό |
| Coverage Pattern | 90 x 20 |
| Depth (cm) | 30.3 |
| Freq From (Hz) | 70 |
| Freq Up to (Hz) | 20000 |
| Height (cm) | 89.2 |
| High Speaker Size | 24x1" |
| Impedance | Ohm |
| IP Rating | 66 |
| Low Speaker Size | 8x4" |
| Manufacturer | TOA |
| Measurement Unit | PIECE |
| Nominal Impedance (Ohms) | 8 |
| Order Quantity | 1 |
| Power Rating Continuous Watt/Ohm | 600 |
| Shell Material | Mdf |
| Speaker System | Two Way |
| Speaker Type | Passive/Παθητικό |
| Use | COLUMN SPEAKERS |
| Warranty Months | 12 |
| Weight (Kg) | 16 |
| Width (cm) | 16 |
