TOA CEILING SPEAKER 6W 5'' 100V 90dB
Product Code:PC-2668
Available

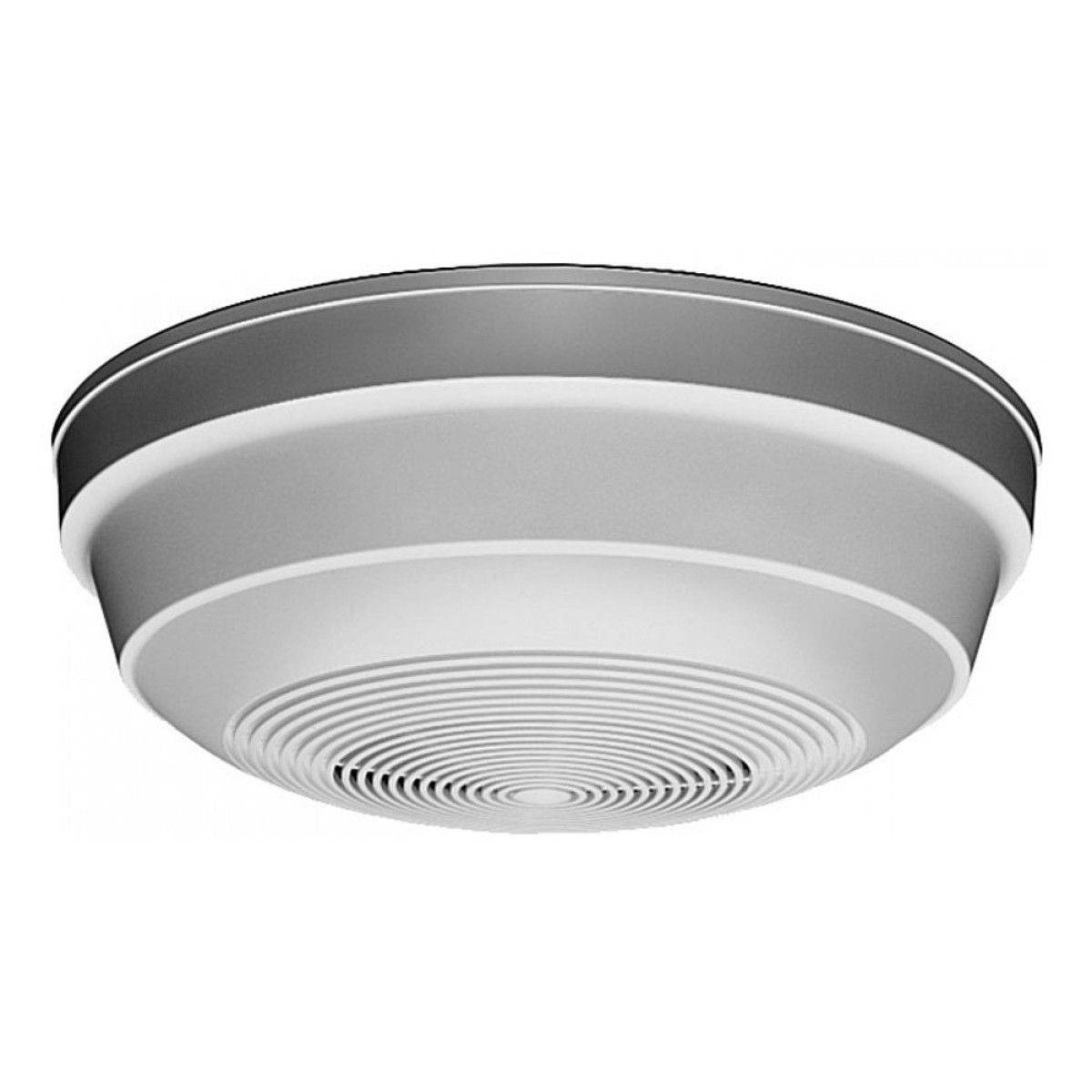

The TOA PC-2668 speaker can be mounted (exposed installation) to the ceiling where flush mounting is impossible. It can be easily installed thanks to its spring catch method. Push-in connector allows quick wire connection, and speaker lines can be bridged by bridging terminals. The supplied bracket can be mounted to a flush-mount pull box.
Spec Rated Input 6 W (for 100 V Line), 3 W (for 70 V Line)
Rated Impedance 100 V Line: 1.7 kohms (6 W), 3.3 kohms (3 W),
(6.7 kohms (1.5 W), 13 kohms (0.8 W): Internal wiring must be changed)
70 V line: 1.7 kohms (3 W), 3.3 kohms (1.5 W),
(6.7 kohms (0.8 W), 13 kohms (0.4 W): Internal wiring must be changed)
Sound Pressure Level 90 dB (1 W, 1 m, 330 - 3,300 Hz Pink noise)
Frequency Response 100 - 16,000 Hz
Speaker Component 12 cm dynamic cone-type speaker
Finish Baffle: ABS resin, off-white (RAL 9010 or equivalent color)
Dimensions 260 x 92 (D) (Exposed section) mm
Spec Rated Input 6 W (for 100 V Line), 3 W (for 70 V Line)
Rated Impedance 100 V Line: 1.7 kohms (6 W), 3.3 kohms (3 W),
(6.7 kohms (1.5 W), 13 kohms (0.8 W): Internal wiring must be changed)
70 V line: 1.7 kohms (3 W), 3.3 kohms (1.5 W),
(6.7 kohms (0.8 W), 13 kohms (0.4 W): Internal wiring must be changed)
Sound Pressure Level 90 dB (1 W, 1 m, 330 - 3,300 Hz Pink noise)
Frequency Response 100 - 16,000 Hz
Speaker Component 12 cm dynamic cone-type speaker
Finish Baffle: ABS resin, off-white (RAL 9010 or equivalent color)
Dimensions 260 x 92 (D) (Exposed section) mm
More
Less
33,63€
37,35€
Reviews
0 reviews
Write a review
Description
The TOA PC-2668 speaker can be mounted (exposed installation) to the ceiling where flush mounting is impossible. It can be easily installed thanks to its spring catch method. Push-in connector allows quick wire connection, and speaker lines can be bridged by bridging terminals. The supplied bracket can be mounted to a flush-mount pull box.
Spec Rated Input 6 W (for 100 V Line), 3 W (for 70 V Line)
Rated Impedance 100 V Line: 1.7 kohms (6 W), 3.3 kohms (3 W),
(6.7 kohms (1.5 W), 13 kohms (0.8 W): Internal wiring must be changed)
70 V line: 1.7 kohms (3 W), 3.3 kohms (1.5 W),
(6.7 kohms (0.8 W), 13 kohms (0.4 W): Internal wiring must be changed)
Sound Pressure Level 90 dB (1 W, 1 m, 330 - 3,300 Hz Pink noise)
Frequency Response 100 - 16,000 Hz
Speaker Component 12 cm dynamic cone-type speaker
Finish Baffle: ABS resin, off-white (RAL 9010 or equivalent color)
Dimensions 260 x 92 (D) (Exposed section) mm
Spec Rated Input 6 W (for 100 V Line), 3 W (for 70 V Line)
Rated Impedance 100 V Line: 1.7 kohms (6 W), 3.3 kohms (3 W),
(6.7 kohms (1.5 W), 13 kohms (0.8 W): Internal wiring must be changed)
70 V line: 1.7 kohms (3 W), 3.3 kohms (1.5 W),
(6.7 kohms (0.8 W), 13 kohms (0.4 W): Internal wiring must be changed)
Sound Pressure Level 90 dB (1 W, 1 m, 330 - 3,300 Hz Pink noise)
Frequency Response 100 - 16,000 Hz
Speaker Component 12 cm dynamic cone-type speaker
Finish Baffle: ABS resin, off-white (RAL 9010 or equivalent color)
Dimensions 260 x 92 (D) (Exposed section) mm
Attributes
Attributes
| Catalog | Professional |
| Category | SPEAKERS |
| Color | White/Λευκό |
| Depth (cm) | 9.2 |
| Freq From (Hz) | 100 |
| Freq Up to (Hz) | 16000 |
| Height (cm) | 26 |
| Impedance | 100V/70V |
| Low Speaker Size | 5" |
| Manufacturer | TOA |
| Measurement Unit | PIECE |
| Order Quantity | 1 |
| Power Rating Continuous Watt/Ohm | 6 |
| Shell Material | Plastic/Synthetic |
| Speaker System | Full Range |
| Speaker Type | Passive/Παθητικό |
| Use | CEILING SPEAKERS |
| Warranty Months | 12 |
| Weight (Kg) | 0.82 |
| Width (cm) | 26 |
