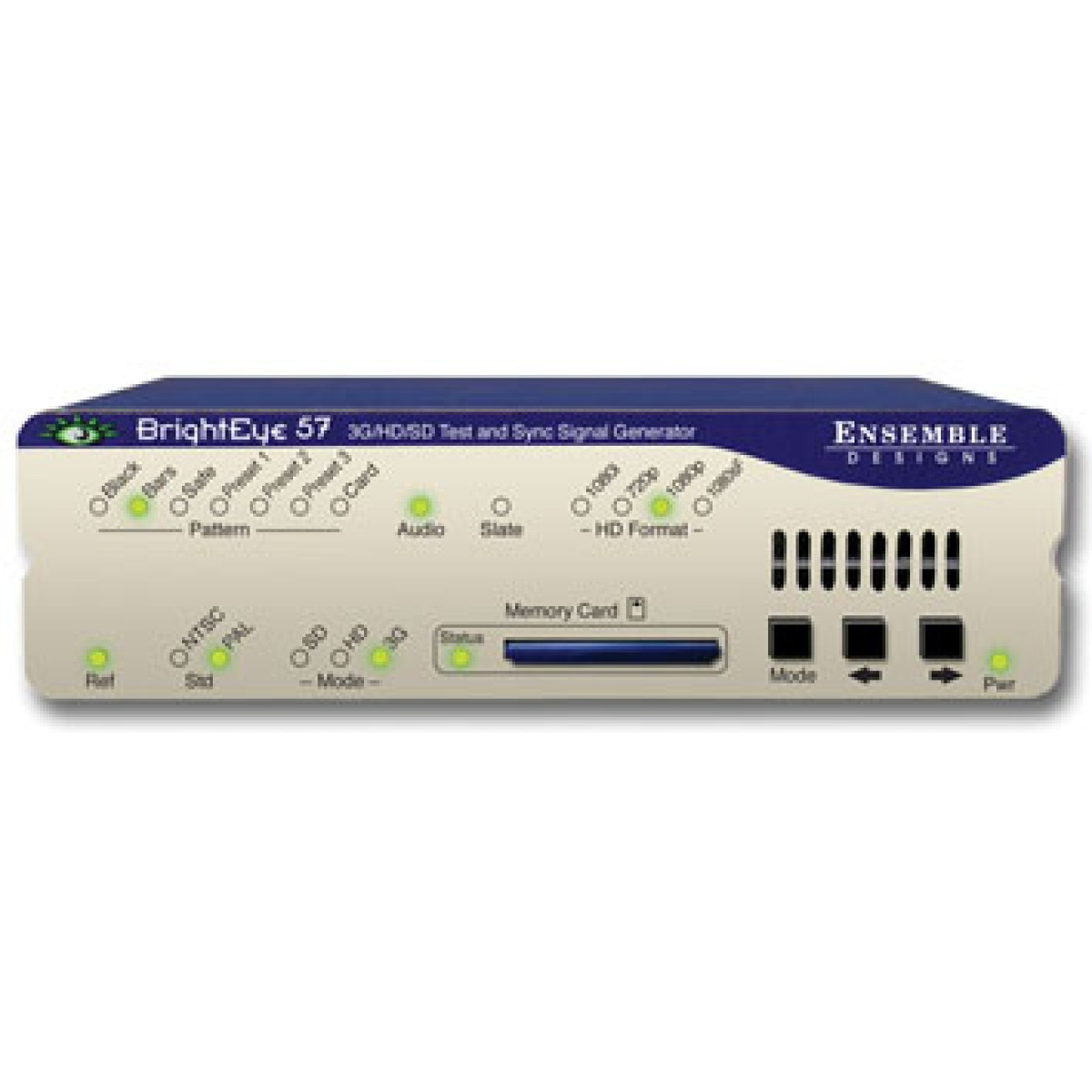

ENSEMBLE DESIGN BRIGHTEYE 57 3G/ HD/SD/COMPOSITE TSG AND SPG
Product Code:BE-57
Out of stock
BrightEye 57 is a genlockable sync generator and test signal generator that can be used as either a slave or master reference generator. It can lock to house reference or it can lock to its own internal precision standard. BrightEye 57 is well suited for remote trucks, post, helicopters and fly packs.
1.5 Gb/s HD, 3 Gb/s HD or SD SDI test signals or black with embedder is output on the SDI BNCs. Composite, Tri-Level Sync and AES digital audio outputs are also provided. There are three user Programmable Outputs that are selectable between AES, LTC, Word clock or 6 Hz Pulse. Analog audio and AES outputs provide tone or silence.
1.5 Gb/s HD, 3 Gb/s HD or SD SDI test signals or black with embedder is output on the SDI BNCs. Composite, Tri-Level Sync and AES digital audio outputs are also provided. There are three user Programmable Outputs that are selectable between AES, LTC, Word clock or 6 Hz Pulse. Analog audio and AES outputs provide tone or silence.
More
Less
Reviews
0 reviews
Write a review
Description
BrightEye 57 is a genlockable sync generator and test signal generator that can be used as either a slave or master reference generator. It can lock to house reference or it can lock to its own internal precision standard. BrightEye 57 is well suited for remote trucks, post, helicopters and fly packs.
1.5 Gb/s HD, 3 Gb/s HD or SD SDI test signals or black with embedder is output on the SDI BNCs. Composite, Tri-Level Sync and AES digital audio outputs are also provided. There are three user Programmable Outputs that are selectable between AES, LTC, Word clock or 6 Hz Pulse. Analog audio and AES outputs provide tone or silence.
1.5 Gb/s HD, 3 Gb/s HD or SD SDI test signals or black with embedder is output on the SDI BNCs. Composite, Tri-Level Sync and AES digital audio outputs are also provided. There are three user Programmable Outputs that are selectable between AES, LTC, Word clock or 6 Hz Pulse. Analog audio and AES outputs provide tone or silence.
Attributes
Attributes
| Catalog | Professional |
| Category | AUDIO VIDEO BROADCASTING |
| Manufacturer | ENSEMBLE DESIGN |
| Measurement Unit | PIECE |
| Order Quantity | 1 |
| Use | INTERFACE A/V STAND ALONE |
| Warranty Months | 0 |
