JBL 2-WAYS SPEAKER, 600W, 15'', 8Ω, 96dB IP 56
Product Code:AM 7215/95-WRX
Out of stock

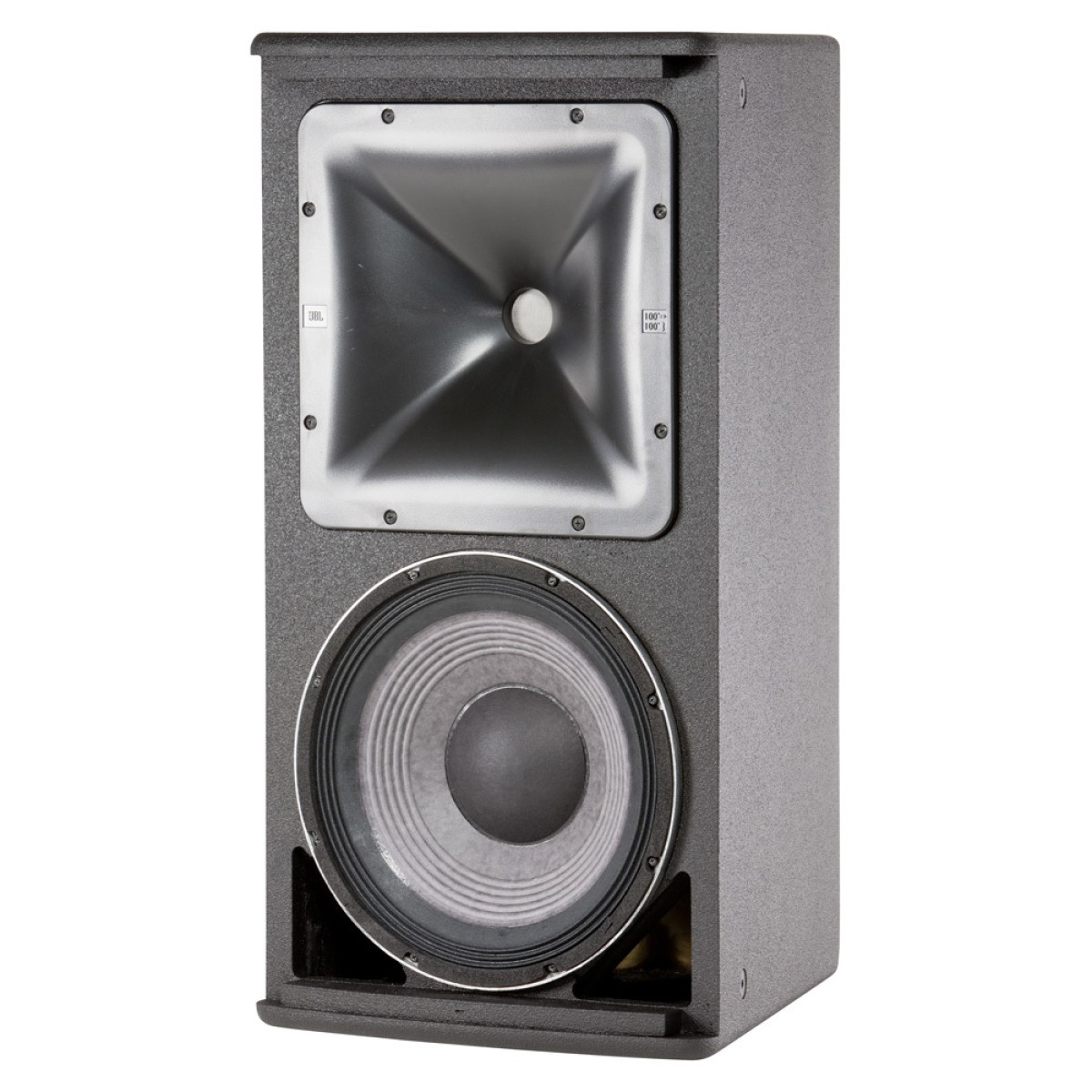

The AM7215/95-WRX is an extreme weather protected, high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
Features :
90° x 50° Coverage
2265H Differential Drive Low- Frequency Driver
2432H High-Frequency Compression Driver
Large PT Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable waveguide for vertical or horizontal orientation
Bi-Amp/Passive Switchable
Available in Black, White and WRX finishes
Features :
90° x 50° Coverage
2265H Differential Drive Low- Frequency Driver
2432H High-Frequency Compression Driver
Large PT Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable waveguide for vertical or horizontal orientation
Bi-Amp/Passive Switchable
Available in Black, White and WRX finishes
More
Less
Reviews
0 reviews
Write a review
Description
The AM7215/95-WRX is an extreme weather protected, high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
Features :
90° x 50° Coverage
2265H Differential Drive Low- Frequency Driver
2432H High-Frequency Compression Driver
Large PT Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable waveguide for vertical or horizontal orientation
Bi-Amp/Passive Switchable
Available in Black, White and WRX finishes
Features :
90° x 50° Coverage
2265H Differential Drive Low- Frequency Driver
2432H High-Frequency Compression Driver
Large PT Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable waveguide for vertical or horizontal orientation
Bi-Amp/Passive Switchable
Available in Black, White and WRX finishes
Attributes
Attributes
| Catalog | Professional |
| Category | SPEAKERS |
| Color | Black/Μαύρο |
| Coverage Pattern | 90 x50 |
| Depth (cm) | 503 |
| Freq From (Hz) | 34 |
| Freq Up to (Hz) | 20000 |
| Height (cm) | 781 |
| High Speaker Size | 1.5" |
| Impedance | Ohm |
| IP Rating | 56 |
| Low Speaker Size | 15" |
| Manufacturer | JBL |
| Max SPL Output (dB) | 130 |
| Measurement Unit | PIECE |
| Nominal Impedance (Ohms) | 8 |
| Order Quantity | 1 |
| Power Rating Continuous Watt/Ohm | 1000 |
| Shell Material | Wood |
| Speaker System | Two Way |
| Speaker Type | Passive/Παθητικό |
| Use | INSTALLATION SPEAKERS |
| Warranty Months | 24 |
| Weight (Kg) | 27.2 |
| Width (cm) | 420 |
